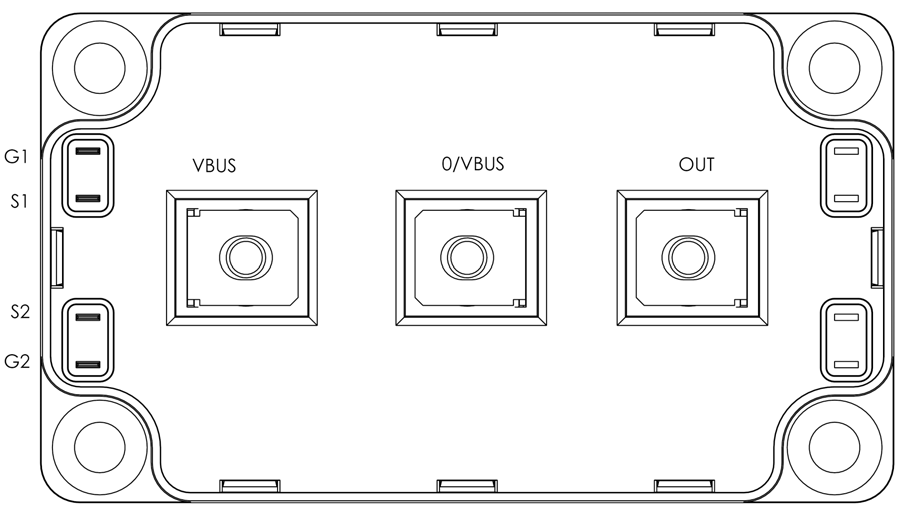

MICROCHIP APTM20AM04FG
Manufacturer:
MICROCHIP
Mfr. Part #:
APTM20AM04FG
Package:
-
Customer #:
Description:
200V 372A 5mΩ@10V 5V@10mA 1.25kW Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP APTM20AM04FG
Products Specifications
Manufacturer:
Package:
-
Configuration:
Half-Bridge
Drain to Source Voltage:
200V
Current - Continuous Drain(Id):
372A
Operating Temperature -:
-40℃~+150℃
RDS(on):
5mΩ@10V
Gate Threshold Voltage (Vgs(th)):
5V@10mA
Reverse Transfer Capacitance (Crss@Vds):
580pF
Number:
-
Output Capacitance(Coss):
9.32nF
Pd - Power Dissipation:
1.25kW
Input Capacitance(Ciss):
28.9nF
Gate Charge(Qg):
560nC
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
