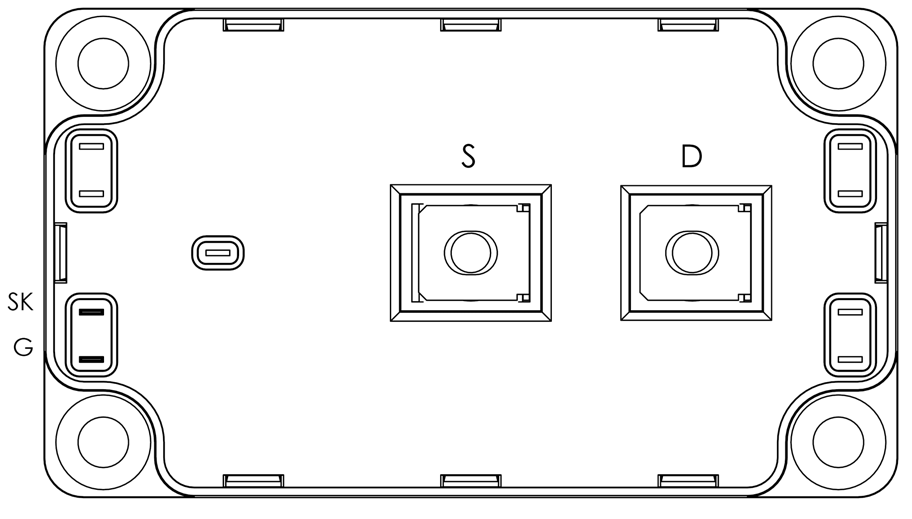

MICROCHIP APTM50UM13SAG

MICROCHIP APTM50UM13SAG

Name: MICROCHIP APTM50UM13SAG
Brand: MICROCHIP

Manufacturer: MICROCHIP

Mfr. Part #: APTM50UM13SAG

Package: -

Customer #:

Description: 500V 335A 15mΩ@10V,167.5A 5V@20mA 3.29kW Single FETs, MOSFETs RoHS

Datasheet: MICROCHIP APTM50UM13SAG

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MICROCHIP

Package:

Drain to Source Voltage:

500V

Current - Continuous Drain(Id):

335A

Operating Temperature -:

-40℃~+150℃

RDS(on):

15mΩ@10V,167.5A

Gate Threshold Voltage (Vgs(th)):

5V@20mA

Type:

Reverse Transfer Capacitance (Crss@Vds):

420pF

Number:

Output Capacitance(Coss):

8.24nF

Input Capacitance(Ciss):

42.2nF

Pd - Power Dissipation:

3.29kW

Gate Charge(Qg):

800nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
