MICROCHIP ARF460BG
Manufacturer:
MICROCHIP
Mfr. Part #:
ARF460BG
Package:

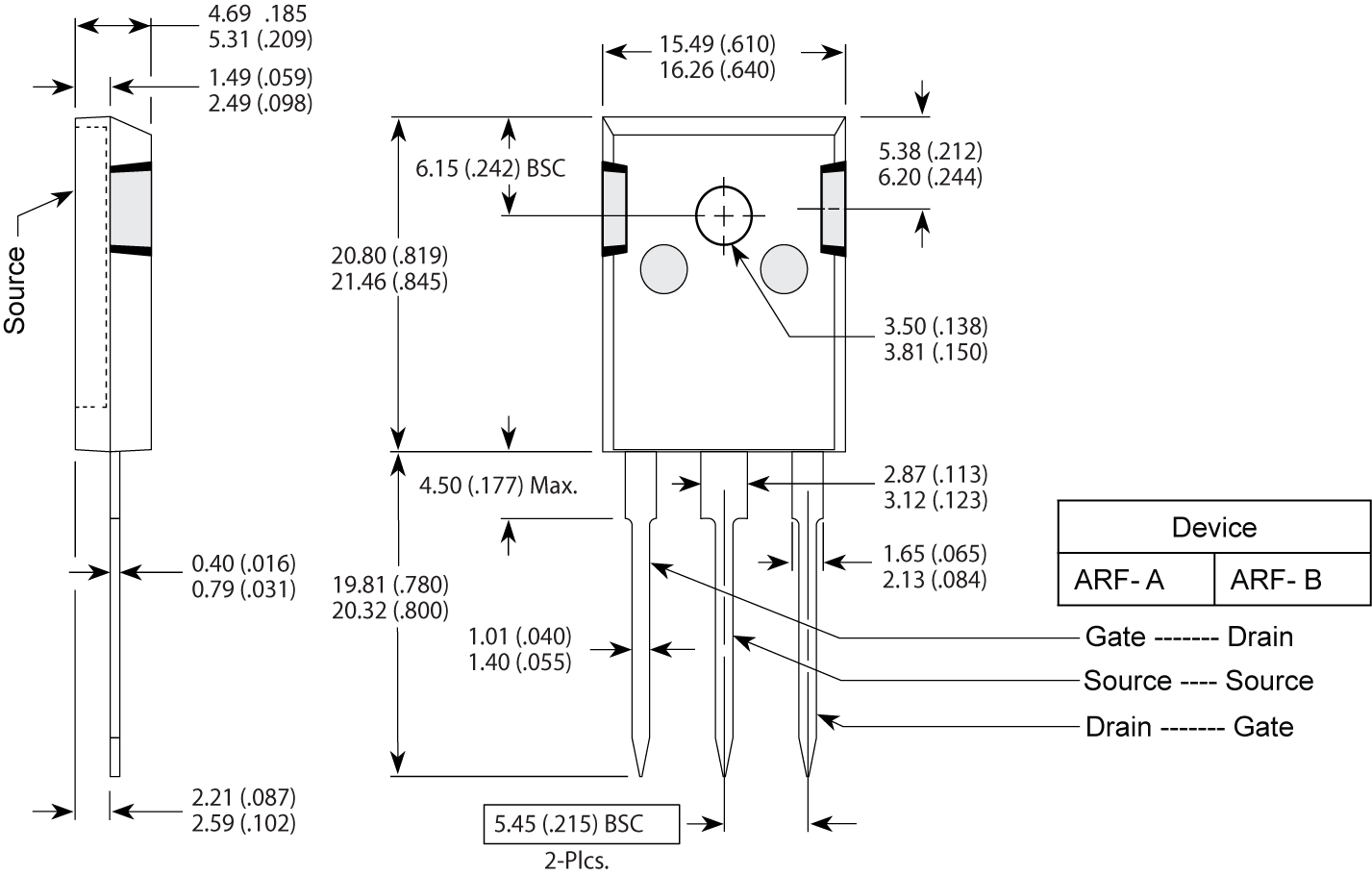

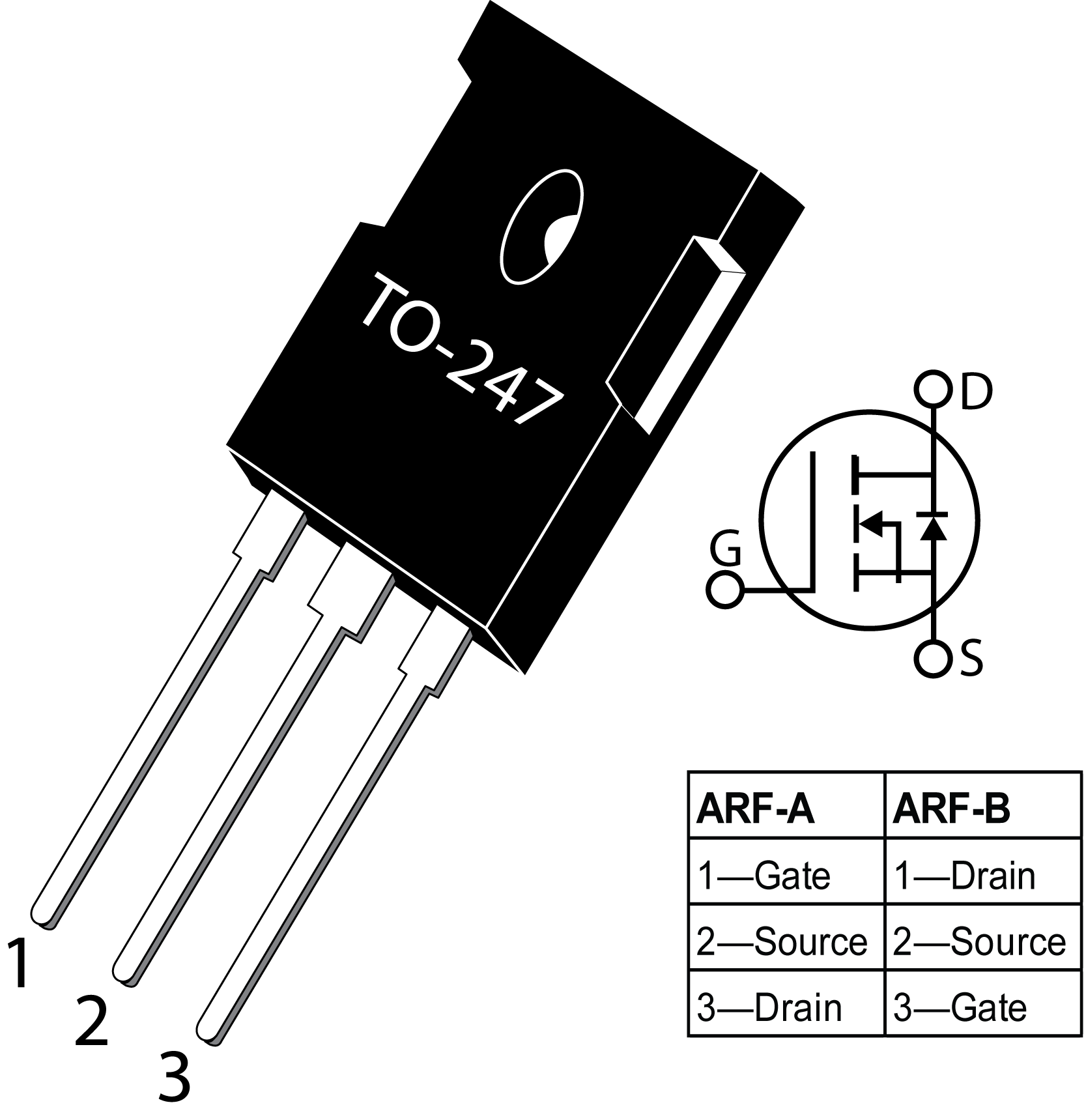

TO-247CS
Customer #:
Description:
14A 5V@50mA 250W TO-247CS Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP ARF460BG
Products Specifications
Manufacturer:
Package:
TO-247CS
Current - Continuous Drain(Id):
14A
Operating Temperature -:
-55℃~+150℃

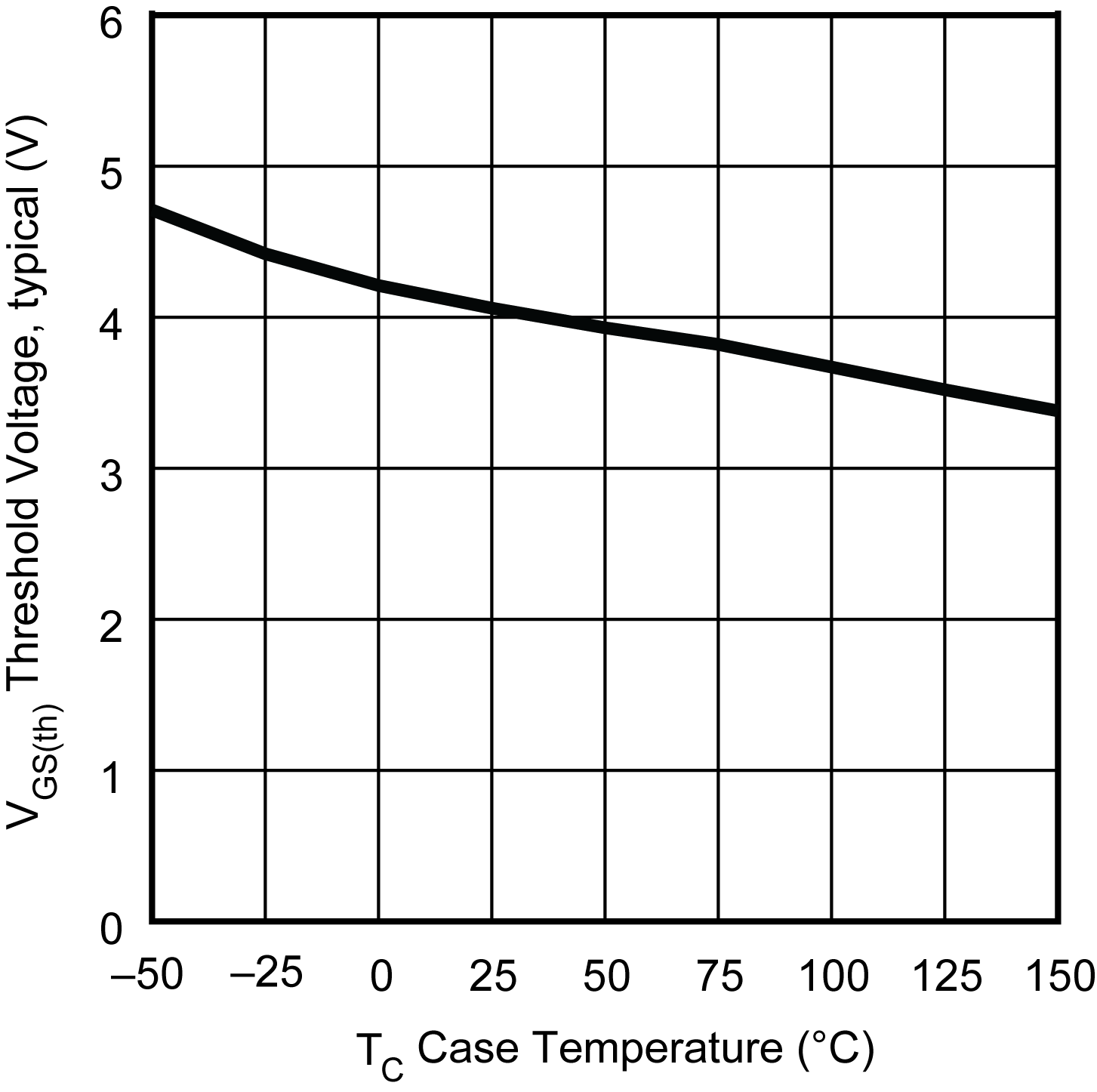

Gate Threshold Voltage (Vgs(th)):
5V@50mA
Reverse Transfer Capacitance (Crss@Vds):
75pF
Number:
-
Pd - Power Dissipation:
250W
Output Capacitance(Coss):
180pF
Input Capacitance(Ciss):
1.4nF
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
