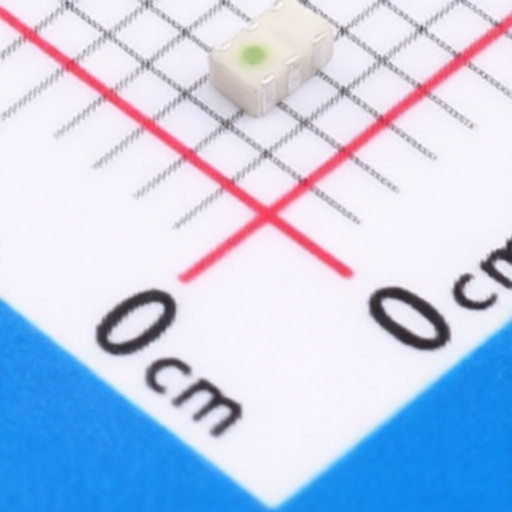

MEGSINE MDPX25381722D21
Manufacturer:
MEGSINE
Asian Brands
Mfr. Part #:
MDPX25381722D21
Package:
SMD-6P,2x1.3mm
Customer #:
Key Attributes:
Multilayer Diplexer For 1710-2200MHz/2496-3800MHz
Description:
15dB 15dB SMD-6P,2x1.3mm RF Multiplexers RoHS
Datasheet:
MEGSINE MDPX25381722D21
Products Specifications
Category:
Manufacturer:
Package:
SMD-6P,2x1.3mm
High band insertion loss (Max):
1.5dB
Low Band Attenuation (Min):
15dB
Low band return loss (Min):
10dB
Operating Temperature:
-40℃~+85℃
Low band insertion loss (Max):
1.5dB
High Band Attenuation (Min):
15dB
High band return loss (Min):
10dB
High band range:
2.496GHz~3.8GHz
Low band range:
1.71GHz~2.2GHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548000001 |
| USHTS | 8548000000 |
| TARIC | 8548009099 |
| CAHTS | 8548000000 |
| BRHTS | 85480010 |
| INHTS | 85480000 |
| MXHTS | 8548.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MEGSINE
190 Products
Shenzhen MEGSINE Technology Co., Ltd.
(hereinafter referred to as "MEGSINE") was established in 2012. It is a high-tech enterprise focusing on the research, development, production and sales of 4G/5G RF passive chips and RF front-end chips. MEGSINE masters the core process and design technology of RF passive chips and SIP chips, has the industry's professional model algorithm and development process, and can provide filters, power dividers, couplers, 3dB bridges, baluns, duplexers, multiplexers, filter components, RF modules and other products designed and developed based on IPD, LTCC, MEMS, ceramic mixed pressure plates and other processes in large quantities, covering frequencies from 10M to 100GHz. The products are small in size and highly integrated, and are widely used in wireless communications, navigation, radar, drones and other fields.
