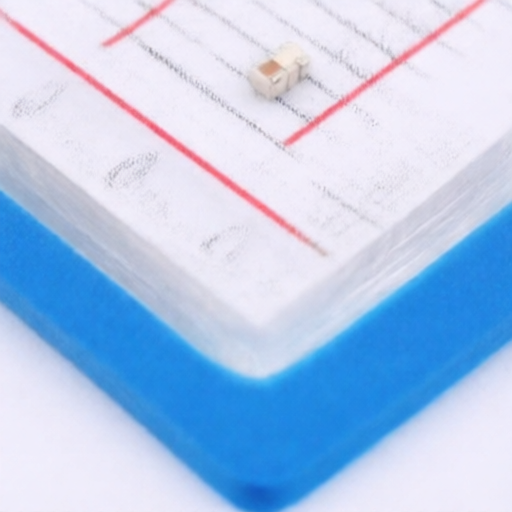

Mini-Circuits LDPW-162-242+
Manufacturer:
Mini-Circuits
Mfr. Part #:
LDPW-162-242+
Package:
0603
Customer #:
Key Attributes:
Ceramic Diplexer 50Ω DC to 6000MHz
Description:
20dB 20dB 0603 RF Multiplexers RoHS
Datasheet:
Mini-Circuits LDPW-162-242+
Products Specifications
Category:
Manufacturer:
Package:
0603
High band insertion loss (Max):
1.3dB
Low Band Attenuation (Min):
20dB
Low band return loss (Min):
20dB
Operating Temperature:
-55℃~+100℃
Low band insertion loss (Max):
0.9dB
High Band Attenuation (Min):
20dB
High band return loss (Min):
16dB
High band range:
2.4GHz~6GHz
Low band range:
0Hz~1.65GHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8548000001 |
| USHTS | 8548000000 |
| TARIC | 8548009099 |
| CAHTS | 8548000000 |
| BRHTS | 85480010 |
| INHTS | 85480000 |
| MXHTS | 8548.10.01 |
