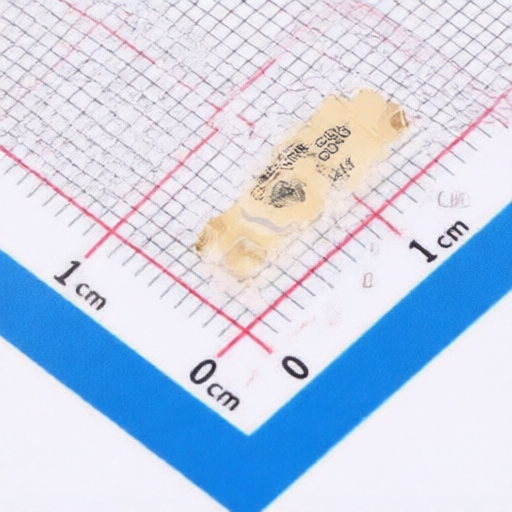

MEGSINE MHC4350E03
Manufacturer:
MEGSINE
Asian Brands
Mfr. Part #:
MHC4350E03
Package:
SMD-4P,14.2x5.1mm
Customer #:
Key Attributes:
3dB 90° Directional Coupler
Description:
0.6dB 20dB 0.5dB 2.6GHz~6.1GHz SMD-4P,14.2x5.1mm RF Directional Coupler RoHS
Datasheet:
MEGSINE MHC4350E03
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,14.2x5.1mm
Width:
5.08mm
Insertion Loss:
0.6dB
Return Loss:
20dB
Coupling Factor:
0.5dB
Frequency Range:
2.6GHz~6.1GHz
Length:
14.22mm
Operating Temperature:
-55℃~+105℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8517799000 |
| USHTS | 8517790000 |
| TARIC | 8517790000 |
| CAHTS | 8517790000 |
| BRHTS | 85177900 |
| INHTS | 85177990 |
| MXHTS | 8517.70.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MEGSINE
190 Products
Shenzhen MEGSINE Technology Co., Ltd.
(hereinafter referred to as "MEGSINE") was established in 2012. It is a high-tech enterprise focusing on the research, development, production and sales of 4G/5G RF passive chips and RF front-end chips. MEGSINE masters the core process and design technology of RF passive chips and SIP chips, has the industry's professional model algorithm and development process, and can provide filters, power dividers, couplers, 3dB bridges, baluns, duplexers, multiplexers, filter components, RF modules and other products designed and developed based on IPD, LTCC, MEMS, ceramic mixed pressure plates and other processes in large quantities, covering frequencies from 10M to 100GHz. The products are small in size and highly integrated, and are widely used in wireless communications, navigation, radar, drones and other fields.
