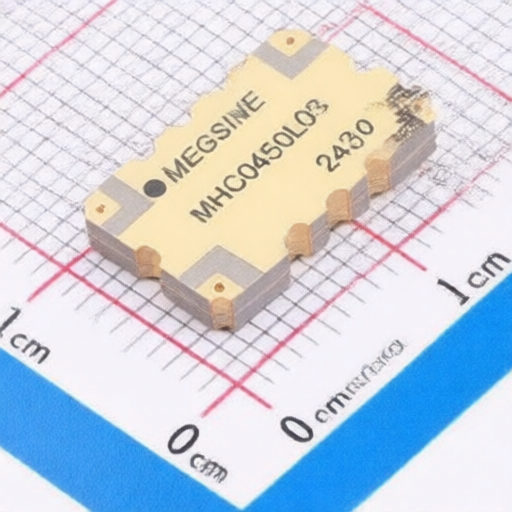

MEGSINE MHC0450L03
Manufacturer:
MEGSINE
Asian Brands
Mfr. Part #:
MHC0450L03
Package:
SMD-4P,14.2x8.9mm
Customer #:
Key Attributes:
3dB 90° Directional Coupler
Description:
0.8dB 16dB 0.5dB 400MHz~500MHz SMD-4P,14.2x8.9mm RF Directional Coupler RoHS
Datasheet:
MEGSINE MHC0450L03
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,14.2x8.9mm
Width:
8.89mm
Insertion Loss:
0.8dB
Return Loss:
16dB
Coupling Factor:
0.5dB
Frequency Range:
400MHz~500MHz
Length:
14.22mm
Operating Temperature:
-40℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8517799000 |
| USHTS | 8517790000 |
| TARIC | 8517790000 |
| CAHTS | 8517790000 |
| BRHTS | 85177900 |
| INHTS | 85177990 |
| MXHTS | 8517.70.99 |
