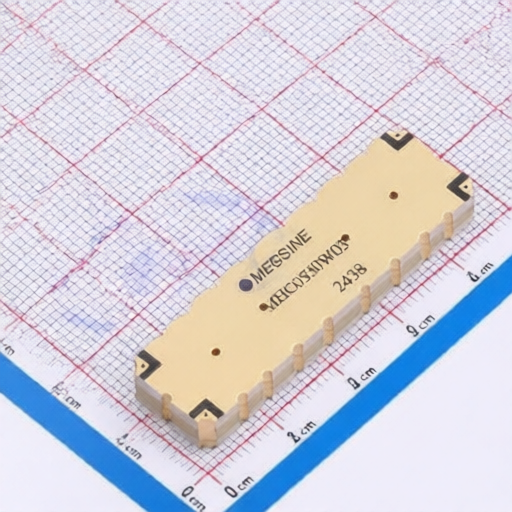

MEGSINE MHC0530W03
Manufacturer:
MEGSINE
Asian Brands
Mfr. Part #:
MHC0530W03
Package:
SMD-4P,45.7x12.7mm
Customer #:
Key Attributes:
3dB 90° Directional Coupler
Description:
0.8dB 17dB 1dB 500MHz~3GHz SMD-4P,45.7x12.7mm RF Directional Coupler RoHS
Datasheet:
MEGSINE MHC0530W03
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,45.7x12.7mm
Insertion Loss:
0.8dB
Return Loss:
17dB
Coupling Factor:
1dB
Frequency Range:
500MHz~3GHz
Operating Temperature:
-40℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8517799000 |
| USHTS | 8517790000 |
| TARIC | 8517790000 |
| CAHTS | 8517790000 |
| BRHTS | 85177900 |
| INHTS | 85177990 |
| MXHTS | 8517.70.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MEGSINE
190 Products
Shenzhen MEGSINE Technology Co., Ltd.
(hereinafter referred to as "MEGSINE") was established in 2012. It is a high-tech enterprise focusing on the research, development, production and sales of 4G/5G RF passive chips and RF front-end chips. MEGSINE masters the core process and design technology of RF passive chips and SIP chips, has the industry's professional model algorithm and development process, and can provide filters, power dividers, couplers, 3dB bridges, baluns, duplexers, multiplexers, filter components, RF modules and other products designed and developed based on IPD, LTCC, MEMS, ceramic mixed pressure plates and other processes in large quantities, covering frequencies from 10M to 100GHz. The products are small in size and highly integrated, and are widely used in wireless communications, navigation, radar, drones and other fields.
