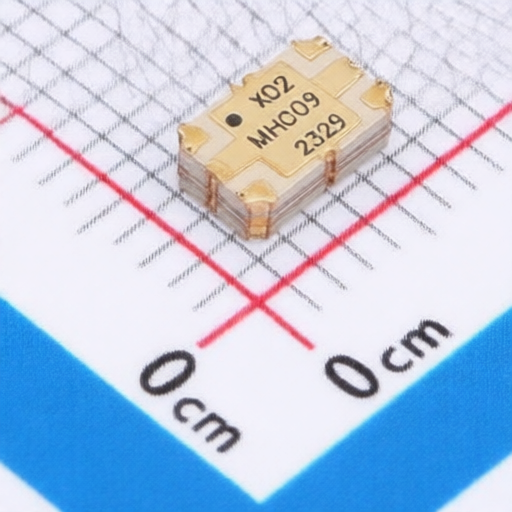

MEGSINE MHC09X02
Manufacturer:
MEGSINE
Asian Brands
Mfr. Part #:
MHC09X02
Package:
SMD-4P,5.1x3.2mm
Customer #:
Key Attributes:
2dB 90° Directional Coupler
Description:
0.35dB 19dB 2dB 690MHz~1GHz SMD-4P,5.1x3.2mm RF Directional Coupler RoHS
Datasheet:
MEGSINE MHC09X02
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,5.1x3.2mm
Width:
3.18mm
Insertion Loss:
0.35dB
Return Loss:
19dB
Coupling Factor:
2dB
Frequency Range:
690MHz~1GHz
Length:
5.08mm
Operating Temperature:
-45℃~+125℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8517799000 |
| USHTS | 8517790000 |
| TARIC | 8517790000 |
| CAHTS | 8517790000 |
| BRHTS | 85177900 |
| INHTS | 85177990 |
| MXHTS | 8517.70.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MEGSINE
190 Products
Shenzhen MEGSINE Technology Co., Ltd.
(hereinafter referred to as "MEGSINE") was established in 2012. It is a high-tech enterprise focusing on the research, development, production and sales of 4G/5G RF passive chips and RF front-end chips. MEGSINE masters the core process and design technology of RF passive chips and SIP chips, has the industry's professional model algorithm and development process, and can provide filters, power dividers, couplers, 3dB bridges, baluns, duplexers, multiplexers, filter components, RF modules and other products designed and developed based on IPD, LTCC, MEMS, ceramic mixed pressure plates and other processes in large quantities, covering frequencies from 10M to 100GHz. The products are small in size and highly integrated, and are widely used in wireless communications, navigation, radar, drones and other fields.
