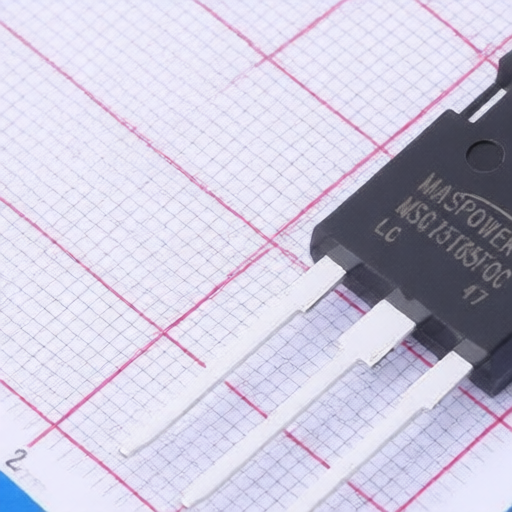

MASPOWER MSG75T65FQC
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MSG75T65FQC
Package:
TO-247
Customer #:
Key Attributes:
IGBT 650V 150A TO-247
Description:
IGBT FS (Field Stop) 650V 150A 439W Through Hole TO-247
Datasheet:
MASPOWER MSG75T65FQC
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
439W
Td(off):
168ns
Td(on):
45ns
Collector-Emitter Breakdown Voltage (Vces):
650V
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Gate Charge(Qg):
27.4nC@15V
Reverse Recovery Time(trr):
75ns
Switching Energy(Eoff):
970uJ
Turn-On Energy (Eon):
2.32mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
