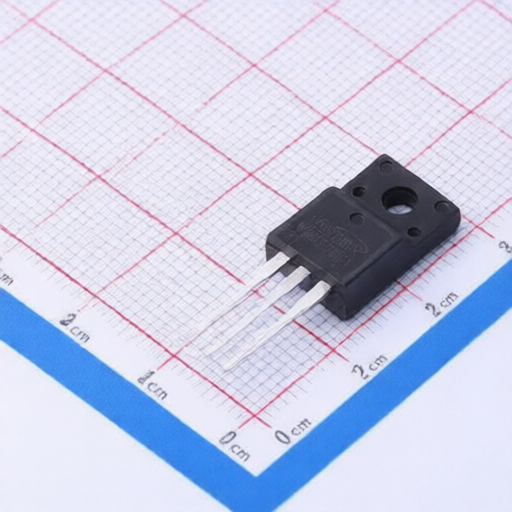

MASPOWER MSG15T65FL
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MSG15T65FL
Package:
TO-220F
Customer #:
Key Attributes:
IGBT 650V 15A TO-220F
Description:
IGBT 650V 15A Through Hole TO-220F
Datasheet:
MASPOWER MSG15T65FL
Products Specifications
Manufacturer:
Package:
TO-220F
Pd - Power Dissipation:
48W
Td(off):
26ns
Td(on):
4ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
23pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@0.5mA
Operating Temperature:
-40℃~+175℃
Gate Charge(Qg):
25nC@15V
Reverse Recovery Time(trr):
40ns
Switching Energy(Eoff):
0.27uJ
Turn-On Energy (Eon):
0.18uJ
Input Capacitance(Cies):
652pF
Pulsed Current- Forward(Ifm):
60A
Output Capacitance(Coes):
64pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
