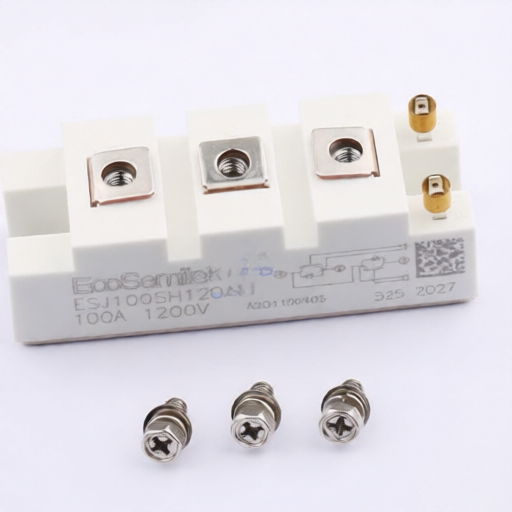

MASPOWER ESJ100SH120AN
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
ESJ100SH120AN
Package:
FD-7
Customer #:
Key Attributes:
IGBT Inverter, Diode Inverter
Description:
555W 1.2kV FD-7 Single IGBTs RoHS
Datasheet:
MASPOWER ESJ100SH120AN
Products Specifications
Manufacturer:
Package:
FD-7
Td(off):
300ns
Pd - Power Dissipation:
555W
Td(on):
130ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.34nF
Input Capacitance(Cies):
6.28nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.95V@3.8mA
Operating Temperature:
-40℃~+175℃
Pulsed Current- Forward(Ifm):
200A
Output Capacitance(Coes):
0.55nF
Switching Energy(Eoff):
6mJ
Turn-On Energy (Eon):
6.5mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 10 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
