luxin-semi AUGK40N65F1A1
Manufacturer:
luxin-semi
Asian Brands
Mfr. Part #:
AUGK40N65F1A1

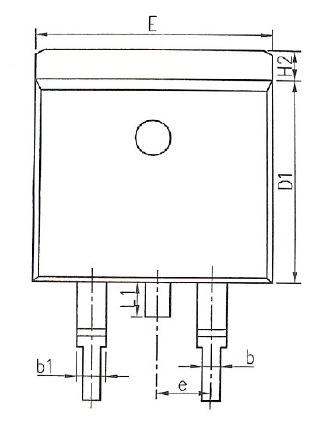

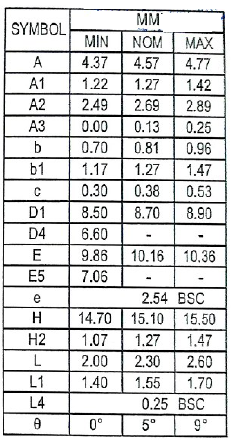

Package:
TO-263-2L
Customer #:
Description:
188W 650V FS (Field Stop) TO-263-2L Single IGBTs RoHS
Datasheet:
luxin-semi AUGK40N65F1A1
Products Specifications
Manufacturer:
Package:
TO-263-2L
Pd - Power Dissipation:
188W
Td(off):
169ns
Td(on):
37ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
37pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4V@250uA
Operating Temperature:
-40℃~+150℃
Gate Charge(Qg):
93nC@15V
Reverse Recovery Time(trr):
95ns
Switching Energy(Eoff):
880uJ
Turn-On Energy (Eon):
1.52mJ
Input Capacitance(Cies):
2.035nF
Pulsed Current- Forward(Ifm):
120A
Output Capacitance(Coes):
82pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
