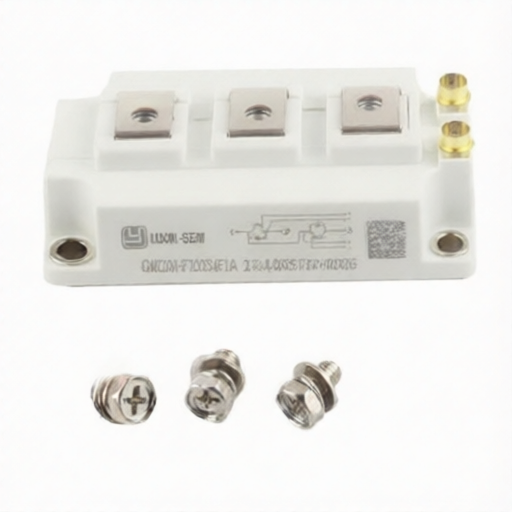

luxin-semi LGM200HF120S4F1A
Manufacturer:
luxin-semi
Asian Brands
Mfr. Part #:
LGM200HF120S4F1A
Package:
Screw Terminals
Customer #:
Key Attributes:
IGBT 1.2kV 200A Screw Terminals
Description:
IGBT 1.2kV 200A Screw Terminals
Datasheet:
luxin-semi LGM200HF120S4F1A
Products Specifications
Manufacturer:
Package:
Screw Terminals
Pd - Power Dissipation:
1.071kW
Td(off):
350ns
Td(on):
160ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
1.29nF
Input Capacitance(Cies):
35.16nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@3mA
Operating Temperature:
-40℃~+150℃
Gate Charge(Qg):
0.9uC@15V,15V
Pulsed Current- Forward(Ifm):
400A
Switching Energy(Eoff):
10.8mJ
Turn-On Energy (Eon):
10.7mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 6 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
luxin-semi
35 Products
Shanghai Luxin Electronic Technology Co., Ltd. was established in May 2017. It is a high-tech enterprise specializing in the research and development, production, application and sales of power semiconductors. After several years of industry accumulation, the company has innovative semiconductor core technology, world-class design capabilities, and process development technology, and brings together outstanding returnees and outstanding local teams. The products cover IGBT, SGT/SJMOSFET, SiC, and other power devices of multiple voltage segments, and provide system solutions for various sub-application fields.
