LRC LSI1012N3T5G
Manufacturer:
LRC
Asian Brands
Mfr. Part #:
LSI1012N3T5G
Package:
SOT-883-3
Customer #:
Key Attributes:
MOSFET N-CH 20V 500mA SOT-883-3
Description:

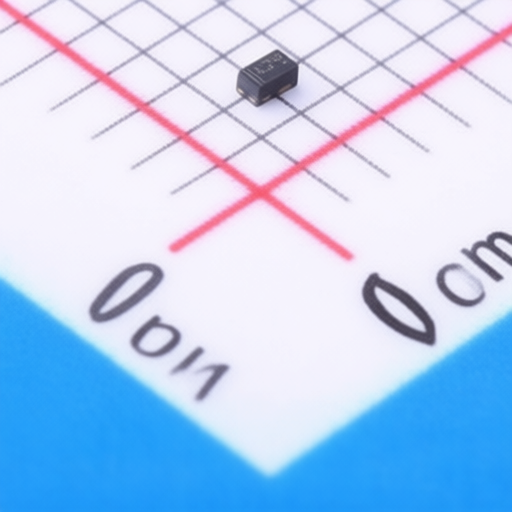

N-Channel 20V 500mA 250mW Surface Mount SOT-883-3
Datasheet:
LRC LSI1012N3T5G
Products Specifications
Manufacturer:
Package:
SOT-883-3
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
500mA
RDS(on):
1.25Ω@1.8V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
900mV@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
5.8pF
Number:
1 N-channel
Output Capacitance(Coss):
5.8pF
Input Capacitance(Ciss):
43.5pF
Pd - Power Dissipation:
250mW
Gate Charge(Qg):
750pC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 10000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
