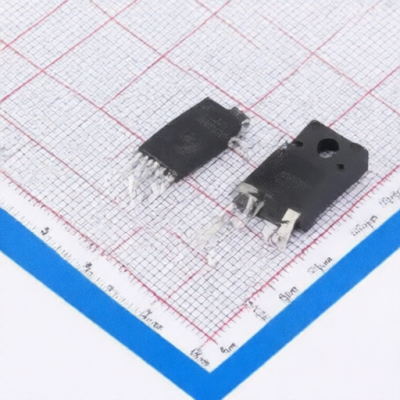

luJing 20N65F
Manufacturer:
luJing
Asian Brands
Mfr. Part #:
20N65F
Package:
TO-220F
Customer #:
Description:
650V 20A 400mΩ@10V,10A 3.5V@250uA 1 N-channel 55W TO-220F Single FETs, MOSFETs RoHS
Products Specifications
Manufacturer:
Package:
TO-220F
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
20A
RDS(on):
400mΩ@10V,10A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
3.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
7.7pF
Number:
1 N-channel
Output Capacitance(Coss):
220pF
Input Capacitance(Ciss):
2.57nF
Pd - Power Dissipation:
55W
Gate Charge(Qg):
13.4nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
