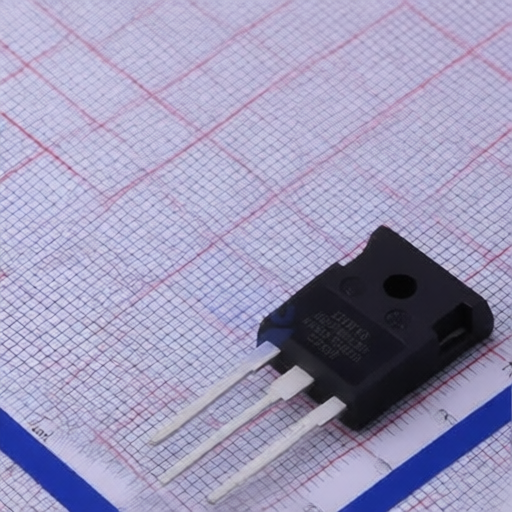

Littelfuse/IXYS IXGH60N60C3D1
Manufacturer:
Littelfuse/IXYS
Mfr. Part #:
IXGH60N60C3D1
Package:
TO-247-3
Customer #:
Description:
380W 600V PT (Punch-Through) TO-247-3 Single IGBTs RoHS
Datasheet:
Littelfuse/IXYS IXGH60N60C3D1
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
70ns
Pd - Power Dissipation:
380W
Td(on):
21ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Input Capacitance(Cies):
-
IGBT Type:
PT (Punch-Through)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
115nC
Operating Temperature:
-55℃~+150℃@(Tj)
Reverse Recovery Time(trr):
25ns
Switching Energy(Eoff):
450uJ
Turn-On Energy (Eon):
800uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Littelfuse/IXYS
3888 Products
IXYS Corporation is a global supplier of power management semiconductors with a comprehensive range of Power MOSFET, IGBT, bipolar, and mixed-signal IC solutions that provide improved efficiency and reduced energy costs in a wide range of power system applications.
