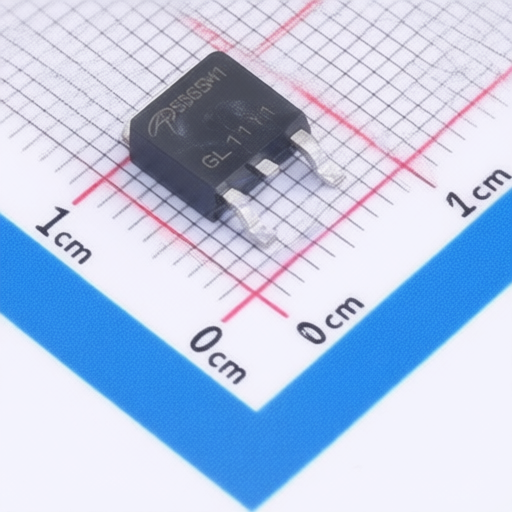

AOS AOD5B65M1
Manufacturer:
AOS
Mfr. Part #:
AOD5B65M1
Package:
TO-252
Customer #:
Key Attributes:
IGBT 650V 10A TO-252
Description:
IGBT 650V 10A Surface Mount TO-252
Datasheet:
AOS AOD5B65M1
Products Specifications
Manufacturer:
Package:
TO-252
Td(off):
106ns
Pd - Power Dissipation:
28W
Td(on):
8.5ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
13pF
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@1mA
Gate Charge(Qg):
14nC
Operating Temperature:
-55℃~+150℃@(Tj)
Reverse Recovery Time(trr):
195ns
Switching Energy(Eoff):
70uJ
Turn-On Energy (Eon):
80uJ
Pulsed Current- Forward(Ifm):
15A
Output Capacitance(Coes):
36pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
AOS
745 Products
AOS's portfolio of products targets high-volume applications, including but not limited to portable computers, flat panel TVs, LED lighting, smart phones, battery packs, consumer and industrial motor controls and power supplies for TVs, computers, servers and telecommunications equipment.
