Littelfuse IXFK20N120P
Manufacturer:
Littelfuse
Mfr. Part #:
IXFK20N120P

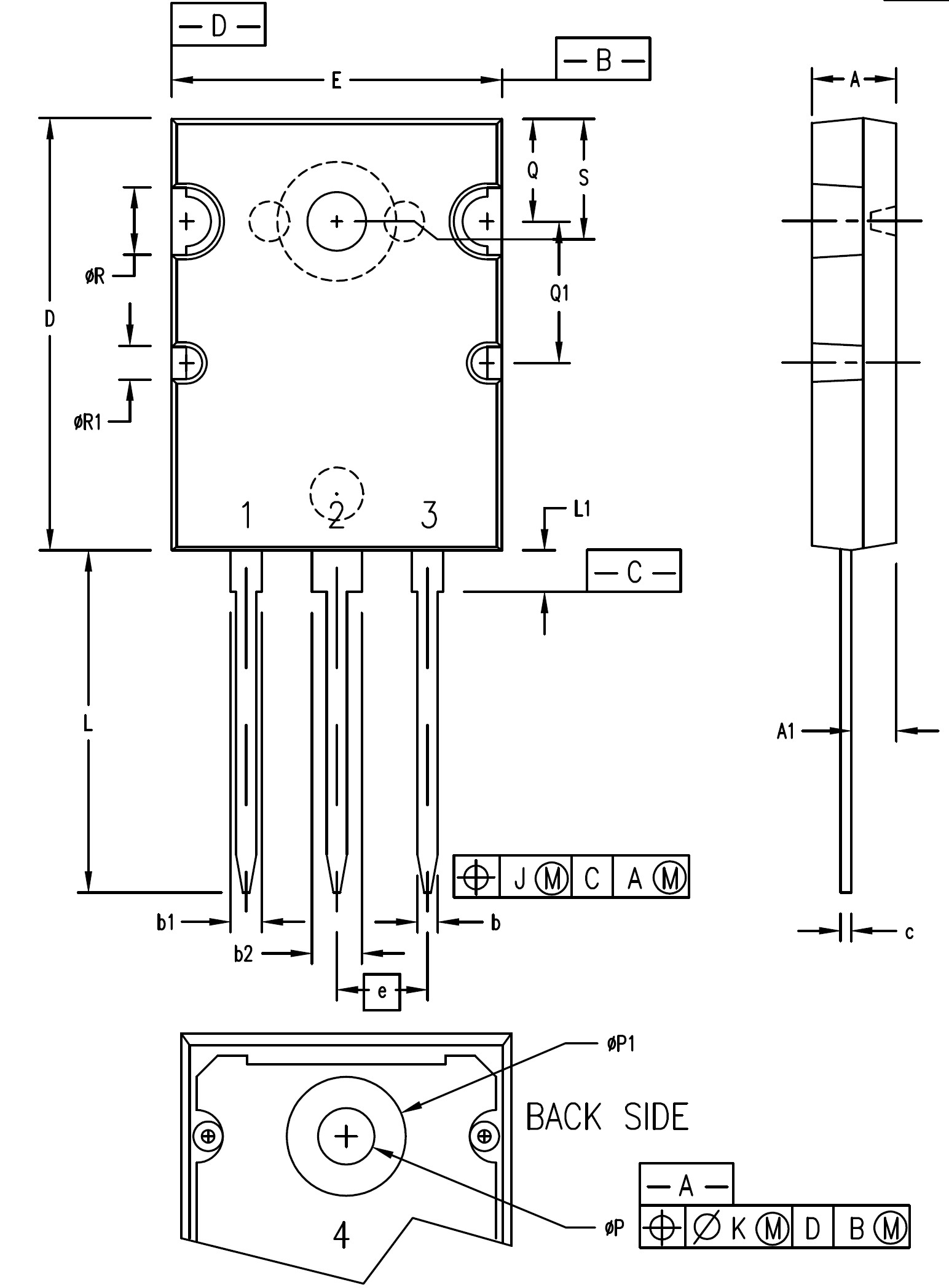

Package:
TO-264AA
Customer #:
Description:
1.2kV 20A 570mΩ@10V,20A 6.5V 1 N-channel 780W TO-264AA Single FETs, MOSFETs RoHS
Datasheet:
Littelfuse IXFK20N120P
Products Specifications
Manufacturer:
Package:
TO-264AA
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
20A
RDS(on):
570mΩ@10V,20A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
6.5V
Reverse Transfer Capacitance (Crss@Vds):
60pF@25V
Number:
1 N-channel
Input Capacitance(Ciss):
11.1nF@25V
Pd - Power Dissipation:
780W
Gate Charge(Qg):
193nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Littelfuse
6791 Products
Founded in 1927, Littelfuse has evolved to be the No.1 circuit protection brand in the world with well-established and growing platforms in power control and sensing technologies. Today, Littelfuse offers the industry’s most diverse and extensive portfolio of products including fuses, semiconductors, polymers, ceramics, relays, sensors and more, serving the electronics, automotive and industrial markets. Each is manufactured to exacting standards of quality and backed by an unwavering commitment to technical support and customer service.
