Littelfuse IXFK52N100X
Manufacturer:
Littelfuse
Mfr. Part #:
IXFK52N100X
Package:

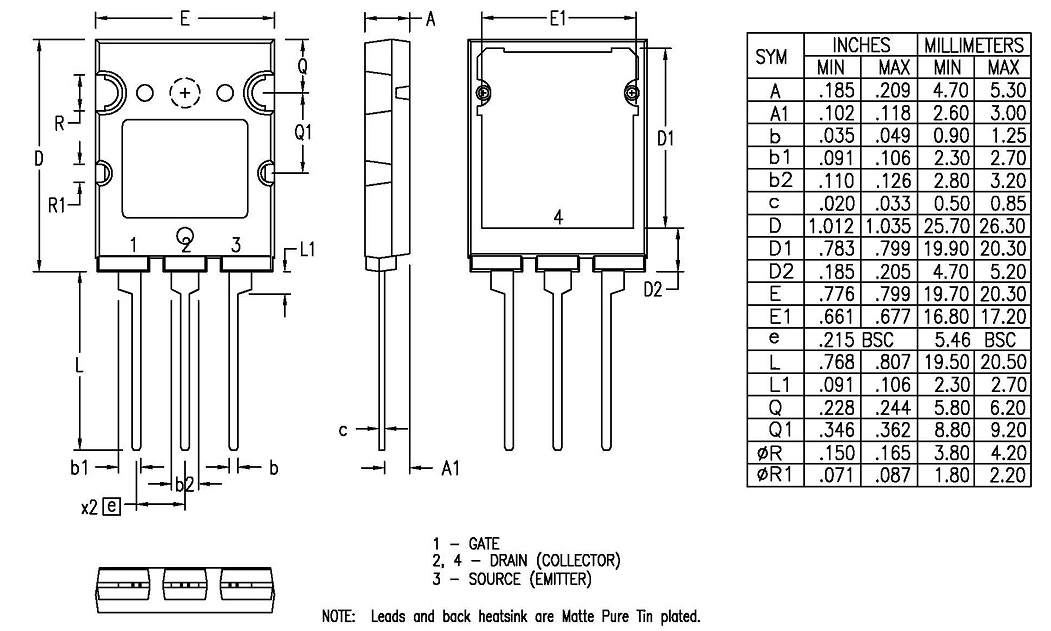

TO-264
Customer #:
Key Attributes:
MOSFET N-CH 1kV 52A TO-264
Description:
N-Channel 1kV 52A 1250W Through Hole TO-264
Datasheet:
Littelfuse IXFK52N100X
Products Specifications
Manufacturer:
Package:
TO-264
Drain to Source Voltage:
1kV
Current - Continuous Drain(Id):
52A
RDS(on):
125mΩ@10V,52A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
3.5V
Reverse Transfer Capacitance (Crss@Vds):
123pF@20V
Number:
1 N-channel
Pd - Power Dissipation:
1.25kW
Input Capacitance(Ciss):
6.725nF@20V
Gate Charge(Qg):
245nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Littelfuse
6791 Products
Founded in 1927, Littelfuse has evolved to be the No.1 circuit protection brand in the world with well-established and growing platforms in power control and sensing technologies. Today, Littelfuse offers the industry’s most diverse and extensive portfolio of products including fuses, semiconductors, polymers, ceramics, relays, sensors and more, serving the electronics, automotive and industrial markets. Each is manufactured to exacting standards of quality and backed by an unwavering commitment to technical support and customer service.
