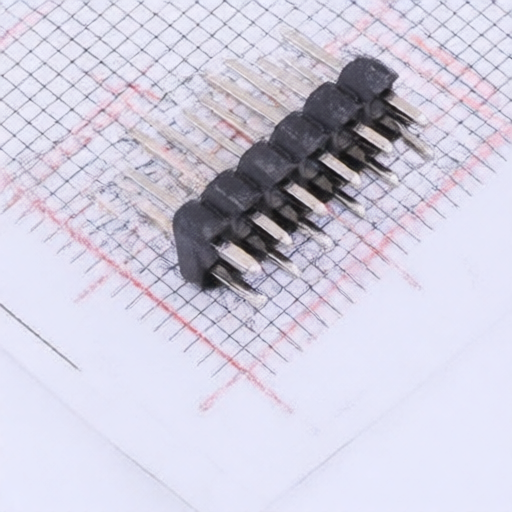

Liansheng PH-00900
Manufacturer:
Liansheng
Asian Brands
Mfr. Part #:
PH-00900
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER 12POS 2.54mm DUAL ROW TH
Description:
2x6P 12P Gold Brass -40℃~+105℃ Pin Header 2.54mm 2.5mm 6mm 3.2mm 3A 2 Through Hole 2.54mm Through Hole,P=2.54mm Headers, Male Pins RoHS
Datasheet:
Liansheng PH-00900
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Pins Structure:
2x6P
Number of Pins:
12P
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Pitch:
2.54mm
Insulation Height:
2.5mm
Length of Mating Pin:
6mm
Length of End Connection Pin:
3.2mm
Current Rating-Signal:
3A
Number of Rows:
2
Mounting Type:
Through Hole
Row Spacing:
2.54mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Liansheng
1081 Products
Shenzhen Liansheng Precision Connector Co., Ltd.
(hereinafter referred to as "Liansheng") is a professional manufacturer of precision connectors, mainly producing and selling pin headers, female headers, simple headers, headers, SCSI, terminal blocks, Rj45, aviation connectors, wires, etc. These products are widely used in communications, industrial control, instrumentation, security, electrical equipment, mobile storage, LCD driver boards, digital home appliances and other fields. Liansheng focuses on the development policy of specialization and automation, coupled with scientific management methods and advanced quality inspection methods, and strives to provide customers with high-quality and low-priced products.
