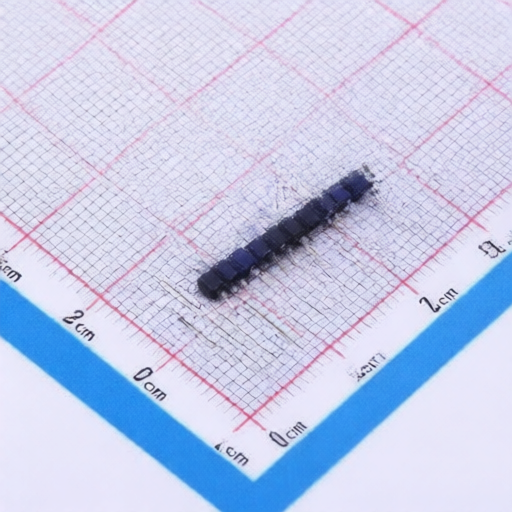

Liansheng PH-00022
Manufacturer:
Liansheng
Asian Brands
Mfr. Part #:
PH-00022
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER 11POS 2.54mm SINGLE ROW TH
Description:
Pin Header 11 Position 2.54mm Pitch Single Row Through Hole -40℃~+105℃
Datasheet:
Liansheng PH-00022
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Number of Pins:
11P
Pins Structure:
1x11P
Contact Material:
-
Operating Temperature:
-40℃~+105℃
Color:
Black
Circluar Pins/Square Pins:
Pin Header
Pitch:
2.54mm
Insulation Height:
2.5mm
Length of Mating Pin:
6mm
Voltage Rating (Max):
-
Length of End Connection Pin:
3mm
Number of Rows:
1
Current Rating-Signal:
3A
Mounting Type:
Through Hole
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Liansheng
1081 Products
Shenzhen Liansheng Precision Connector Co., Ltd.
(hereinafter referred to as "Liansheng") is a professional manufacturer of precision connectors, mainly producing and selling pin headers, female headers, simple headers, headers, SCSI, terminal blocks, Rj45, aviation connectors, wires, etc. These products are widely used in communications, industrial control, instrumentation, security, electrical equipment, mobile storage, LCD driver boards, digital home appliances and other fields. Liansheng focuses on the development policy of specialization and automation, coupled with scientific management methods and advanced quality inspection methods, and strives to provide customers with high-quality and low-priced products.
