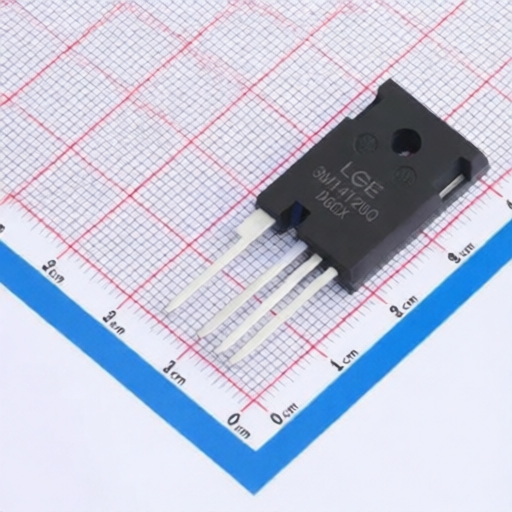

LGE LGE3M14120Q
Manufacturer:
LGE
Asian Brands
Mfr. Part #:
LGE3M14120Q
Package:
TO-247-4
Customer #:
Key Attributes:
Silicon Carbide Power MoSFET
Description:
1.2kV 152A 18mΩ 4V 625W TO-247-4 Single FETs, MOSFETs RoHS
Datasheet:
LGE LGE3M14120Q
Products Specifications
Manufacturer:
Package:
TO-247-4
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
152A
Operating Temperature -:
-40℃~+175℃
RDS(on):
18mΩ
Gate Threshold Voltage (Vgs(th)):
4V
Reverse Transfer Capacitance (Crss@Vds):
17.5pF
Pd - Power Dissipation:
625W
Input Capacitance(Ciss):
5.469nF
Output Capacitance(Coss):
235pF
Gate Charge(Qg):
230nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
LGE
1887 Products
Luguang Electronic Technology Co.,Ltd.
(hereinafter referred to as "LGE") was established in 2002, it is a national high-tech enterprises of discrete semiconductor design, manufacture and sell. With more than 21 years’ experience in engineering and manufacturing, LGE offers a full range of TVS diodes, zener diodes, Schottky diodes, silicon rectifiers and fast recovery rectifiers etc , which are exported to more than 100 countries and widely used in automotive electronics, consumer devices, intelligent manufacturing, security, industry and other fields. LGE’s production facility is fully compliant to current automotive and environmental standards such as IATF16949:2016, ISO9001:2015 and ISO14001:2015. All LGE products are fully compliant to the latest RoHS directive and the major products are UL certified. More than hundreds of products are compatible to ST、Vishay、Onsemi、NXP、ROHM etc. To serve worldwide customers better, LGE sets up branch offices and authorizes distributors in Europe,
