LGE BSS84DW
Manufacturer:
LGE
Asian Brands
Mfr. Part #:
BSS84DW
Package:

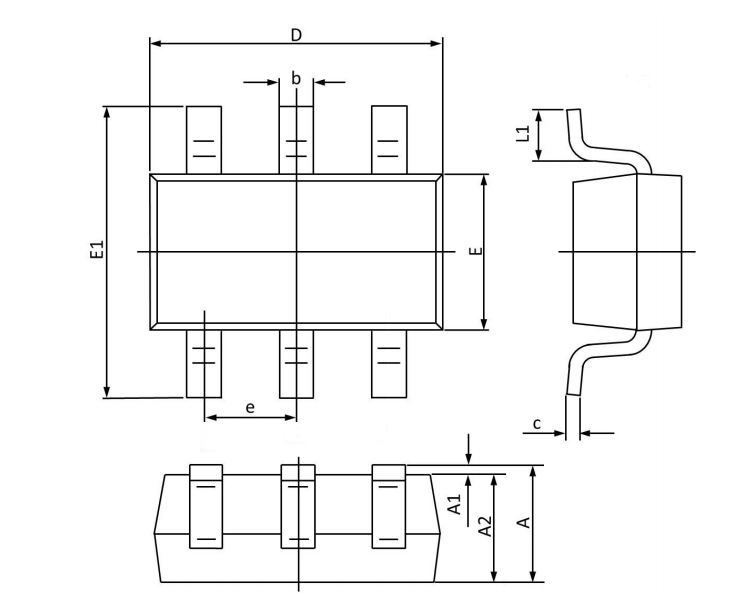

SOT-363
Customer #:
Key Attributes:
MOSFET P-CH 50V 180mA SOT-363
Description:
50V 180mA 2.6Ω@10V 2V 300mW SOT-363 Single FETs, MOSFETs RoHS
Datasheet:
LGE BSS84DW
Products Specifications
Manufacturer:
Package:
SOT-363
Drain to Source Voltage:
50V
Current - Continuous Drain(Id):
180mA
RDS(on):
2.6Ω@10V
Gate Threshold Voltage (Vgs(th)):
2V
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
1.4pF
Input Capacitance(Ciss):
25.2pF
Output Capacitance(Coss):
5.9pF
Pd - Power Dissipation:
300mW
Gate Charge(Qg):
530pC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
