Leiditech IRLML2244
Manufacturer:
Leiditech
Asian Brands
Mfr. Part #:
IRLML2244
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 4.9A SOT-23
Description:

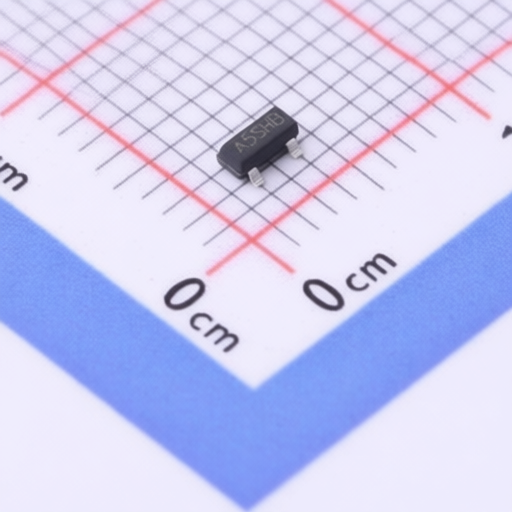

P-Channel 20V 4.9A 1.31W Surface Mount SOT-23
Datasheet:
Leiditech IRLML2244
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
4.9A
RDS(on):
88mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Reverse Transfer Capacitance (Crss@Vds):
151pF
Number:
1 P-Channel
Output Capacitance(Coss):
160pF
Pd - Power Dissipation:
1.31W
Input Capacitance(Ciss):
1.2nF
Gate Charge(Qg):
14.3nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
