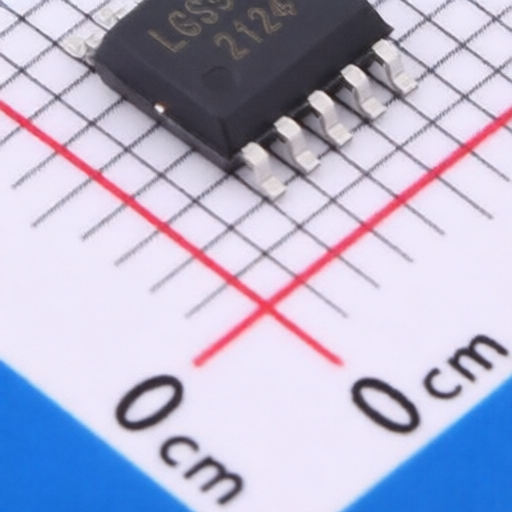

Legend-Si LGS5105
Manufacturer:
Legend-Si
Asian Brands
Mfr. Part #:
LGS5105
Package:
ESSOP-10
Customer #:
Key Attributes:
60V Synchronous Buck Converter with High-Voltage LDO
Description:
Buck Switching Regulator IC Adjustable 2 Output 500mA ESSOP-10
Datasheet:
Legend-Si LGS5105
Products Specifications
Category:
Manufacturer:
Package:
ESSOP-10
Operating Temperature:
-40℃~+125℃@(TJ)
Number of Outputs:
2
Frequency - Switching:
1MHz
Function:
Buck
Output Type:
Adjustable
Topology:
Buck
Operating Voltage:
14V~60V
Switch tube (built-in/external):
Built-in
Output Voltage:
-
Output Current:
500mA
Quiescent Current:
360uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Legend-Si
47 Products
Prism Semiconductor Co., Ltd. is a fabless semiconductor company specializing in high-performance power management chips. We provide the most advanced power management chips in the industry. Based on the ultimate low power consumption and ultra-high conversion efficiency technology, we provide customers with complete solutions for power supply and battery charging and discharging. The current product line mainly includes high-voltage and low-power solutions, covering the voltage range of 24V~100V, mainly for industrial power supplies, used in security, fire protection, smart acquisition terminals and other applications; the product line also includes low-voltage ultra-low standby power solutions for a wide range of applications for wearable device battery charging and discharging, NB-IoT, TWS charging compartment power management and other electronic equipment. The company is headquartered in Nanjing, with R&D, sales and technical support teams in Shanghai, Qingdao and Shenzhen. We are
