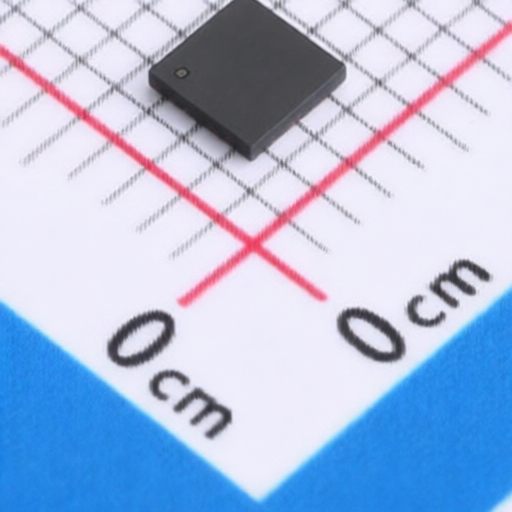

Legend-Si LGS51215
Manufacturer:
Legend-Si
Asian Brands
Mfr. Part #:
LGS51215
Package:
QFN-20L(3x3)
Customer #:
Key Attributes:
LGS51215 Synchronous Buck Controller
Description:
Buck Switching Regulator IC Adjustable 0.65V~2V 1 Output 30A QFN-20L(3x3)
Datasheet:
Legend-Si LGS51215
Products Specifications
Category:
Manufacturer:
Package:
QFN-20L(3x3)
Operating Temperature:
-40℃~+125℃@(TJ)
Frequency - Switching:
300kHz;400kHz;600kHz
Number of Outputs:
1
Function:
Buck
Output Type:
Adjustable
Topology:
Buck
Operating Voltage:
4.5V~24V
Switch tube (built-in/external):
External
Output Voltage:
650mV~2V
Output Current:
30A
Quiescent Current:
300uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
