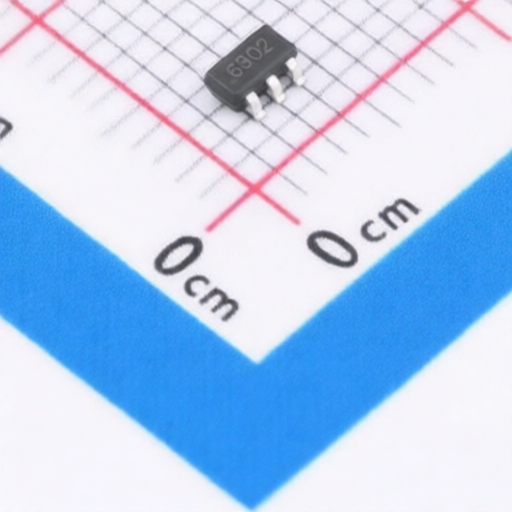

Legend-Si LGS6302B5
Manufacturer:
Legend-Si
Asian Brands
Mfr. Part #:
LGS6302B5
Package:
SOT-23-5
Customer #:
Key Attributes:
High-efficiency asynchronous step-up/step-up&step-down converter with 60V/1.2MHz switching and 2A peak current
Description:
Boost Buck-Boost Switching Regulator IC Adjustable 3V~60V 1 Output SOT-23-5
Datasheet:
Legend-Si LGS6302B5
Products Specifications
Category:
Manufacturer:
Package:
SOT-23-5
Operating Temperature:
-40℃~+125℃@(TJ)
Frequency - Switching:
1.2MHz
Function:
Boost;Buck-Boost
Number of Outputs:
1
Topology:
Boost
Output Type:
Adjustable
Operating Voltage:
3V~60V
Switch tube (built-in/external):
Built-in
Output Current:
-
Output Voltage:
3V~60V
Quiescent Current:
180uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
