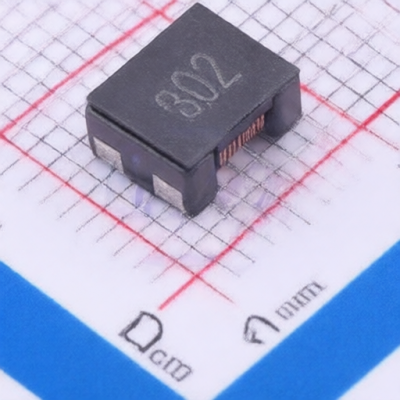

LanTu Micro SCM7060-302T
Manufacturer:
LanTu Micro
Asian Brands
Mfr. Part #:
SCM7060-302T
Package:
SMD-4P,7x6mm
Customer #:
Key Attributes:
CMC 900mA 2LN 3kΩ SMD
Description:
2Line Common Mode Choke Surface Mount 3kΩ@100MHz 900mA DCR 75mΩ
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,7x6mm
Inductance @ Frequency:
-
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-55℃~+125℃
DC Resistance(DCR):
75mΩ
Voltage Rating - DC:
125V
Number of Lines:
2
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
