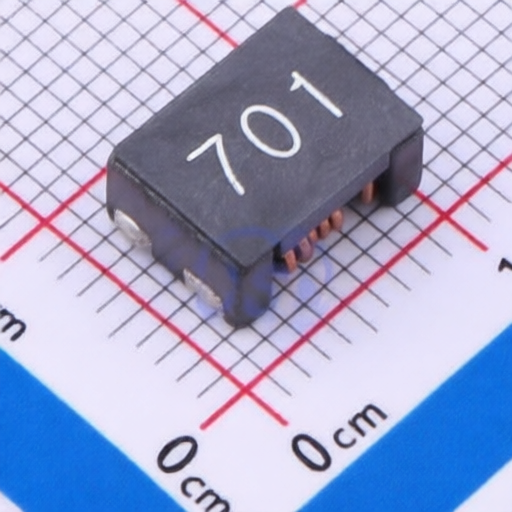

LanTu Micro SCM9070-701T
Manufacturer:
LanTu Micro
Asian Brands
Mfr. Part #:
SCM9070-701T
Package:
SMD,9x7mm
Customer #:
Key Attributes:
CMC 5A 2LN 700Ω SMD
Description:
2Line Common Mode Choke Surface Mount 9x7x4.8mm 700Ω@100MHz 5A DCR 10mΩ
Datasheet:
LanTu Micro SCM9070-701T
Products Specifications
Category:
Manufacturer:
Package:
SMD,9x7mm
Inductance @ Frequency:
-
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
10mΩ
Voltage Rating - DC:
80V
Number of Lines:
2
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 700 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
