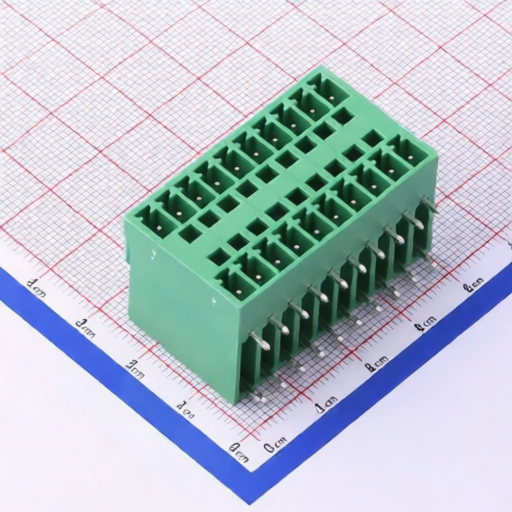

KANGNEX WJ15EDGRH-3.81-10P-14-00A
Manufacturer:
KANGNEX
Asian Brands
Mfr. Part #:
WJ15EDGRH-3.81-10P-14-00A
Package:
Through Hole,Right Angle,P=3.81mm
Customer #:
Key Attributes:
TERM BLOCK HDR 3.81mm
Description:
Board Side/Socket - Closed 3.81mm Pitch Right-Angle Pin
Datasheet:
KANGNEX WJ15EDGRH-3.81-10P-14-00A
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3.81mm
Wire Gauge - mm2:
-
Number of Pins:
20P
Wire Gauge - AWG:
-
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
10
Current Rating:
8A
Color:
Green
Connection Type:
Screw Connection (M2.5)
Pitch:
3.81mm
Connector Type:
Board Side/Socket - Closed
Number of Rows:
2
Termination Style:
Screw
Pin Structure:
2x10P
Mounting Type:
Right-Angle Pin
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
