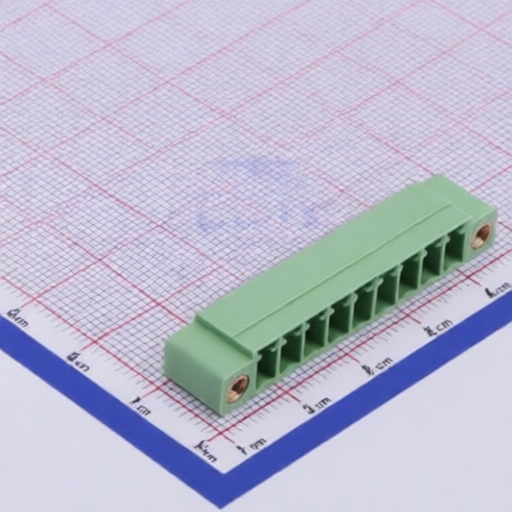

KANGNEX WJ15EDGVM-3.81-09P-14-00A
Manufacturer:
KANGNEX
Asian Brands
Mfr. Part #:
WJ15EDGVM-3.81-09P-14-00A
Package:
Through Hole,P=3.81mm
Customer #:
Key Attributes:
TERM BLOCK HDR 9POS 3.81mm
Description:
9 Position Board Side/Socket - Closed 3.81mm Pitch Straight Pin
Datasheet:
KANGNEX WJ15EDGVM-3.81-09P-14-00A
Products Specifications
Manufacturer:
Package:
Through Hole,P=3.81mm
Wire Gauge - mm2:
-
Wire Gauge - AWG:
-
Number of Pins:
9P
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
9
Current Rating:
8A
Color:
Green
Outlet Direction (Vertical Basis):
-
Connection Type:
-
Pitch:
3.81mm
Connector Type:
Board Side/Socket - Closed
Number of Rows:
1
Pin Structure:
1x9P
Termination Style:
Screw
Mounting Type:
Straight Pin
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 150 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
