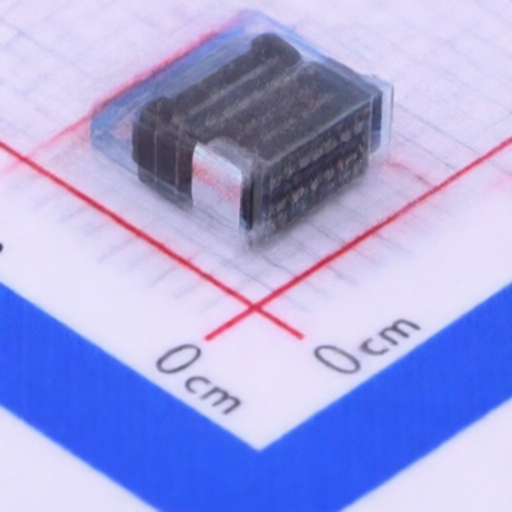

JST 04FMS-1.0SP-TF(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
04FMS-1.0SP-TF(LF)(SN)
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 4POS 1mm TOP AND BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 4 Position 1mm Pitch Double-Sided Contacts, Top and Bottom Entry Surface Mount, Right Angle
Datasheet:
JST 04FMS-1.0SP-TF(LF)(SN)
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Locking Feature:
Slide Lock
Number of Contacts:
4P
Pitch:
1mm
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
