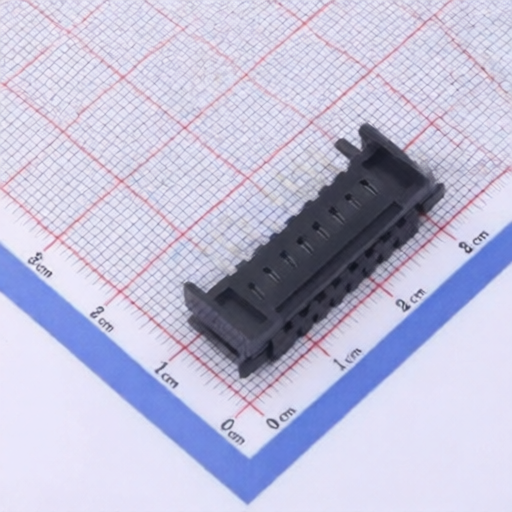

JST 08FDZ-BT(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
08FDZ-BT(LF)(SN)
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
FDZ CONNECTOR 2.54mm pitch/Connectors for FPC and membrane switch leads
Description:
nan
Datasheet:
JST 08FDZ-BT(LF)(SN)
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Operating Temperature:
-40℃~+85℃
Locking Feature:
Non-Latching
Number of Contacts:
8P
Pitch:
2.54mm
Current Rating:
1A
Voltage Rating (Max):
250V
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Through Hole
Contact Plating:
Tin
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JST
2697 Products
JST
- JST has been dedicated to excellence in connection technology as a global manufacturer of high quality (ISO-9001/QS-9000) sub-miniature connectors since 1957. Our product offering consists of Wire-to-Wire, Wire-to-Board, Board-to-Board, Flex/Flat Cable, memory connectors, solderless terminals, chain terminals, shunts and application tooling. JST's Engineering Centers offer design and development, prototype and pre-production manufacturing, and electrical/environmental testing capabilities. Production flexibility, innovative product development, production engineering, quality assurance, value added solutions and responsiveness to customer needs are what have fueled our growth and resulted in rewarding partnerships with our valued customers.
