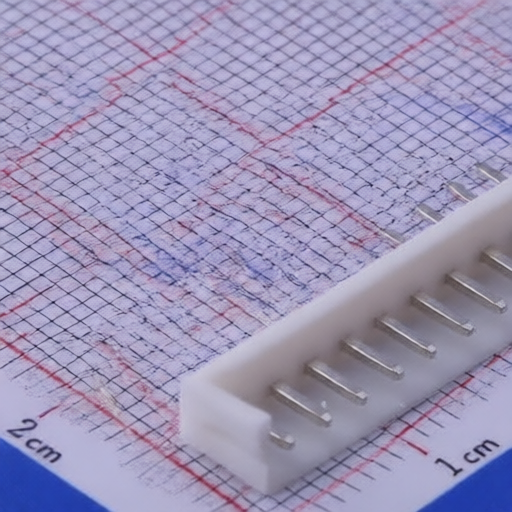

Joint Tech Elec A2502WV-10PN0WT1NK0G

Joint Tech Elec A2502WV-10PN0WT1NK0G

Name: Joint Tech Elec A2502WV-10PN0WT1NK0G
Brand: Joint Tech Elec

Manufacturer: Joint Tech Elec Asian Brands

Mfr. Part #: A2502WV-10PN0WT1NK0G

Package: Through Hole,P=2.5mm

Customer #:

Key Attributes: CONN HEADER TH 10POS 2.5mm

Description: Connector Header 10 position 2.5mm Pitch 3A Through Hole -25℃~+85℃

Datasheet: Joint Tech Elec A2502WV-10PN0WT1NK0G

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Joint Tech Elec

Package:

Through Hole,P=2.5mm

Y-Width of Bottom Edge on Board:

3.8mm

Pins Structure:

1x10P

Reference Series:

Contact Plating:

Tin

Contact Material:

Brass;Glass-Fiber Reinforced PA66

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

UL94V-0

Pitch:

2.5mm

Voltage Rating (Max):

250V

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

27.5mm

Z-Height of the Board:

6mm

Row Spacing:

Mounting Type:

Through Hole

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Joint Tech Elec

1417 Products

Asian Brand

HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
