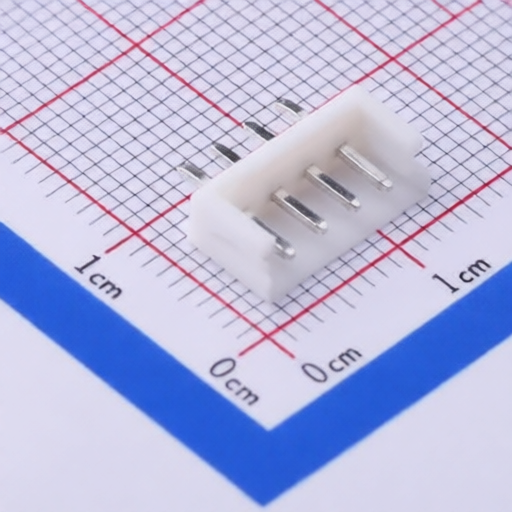

Joint Tech Elec A2502WV-04P

Joint Tech Elec A2502WV-04P

Name: Joint Tech Elec A2502WV-04P
Brand: Joint Tech Elec

Manufacturer: Joint Tech Elec Asian Brands

Mfr. Part #: A2502WV-04P

Package: Through Hole,P=2.5mm

Customer #:

Key Attributes: CONN HEADER TH 4POS 2.5mm

Description: Connector Header 4 position 2.5mm Pitch 3A Through Hole -25℃~+85℃

Datasheet: Joint Tech Elec A2502WV-04P

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Joint Tech Elec

Package:

Through Hole,P=2.5mm

Y-Width of Bottom Edge on Board:

3.8mm

Reference Series:

Pins Structure:

1x4P

Contact Plating:

Tin

Contact Material:

Brass;PA66

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

UL94V-0

Pitch:

2.5mm

Voltage Rating (Max):

250V

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

12.5mm

Z-Height of the Board:

6mm

Row Spacing:

Mounting Type:

Through Hole

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
