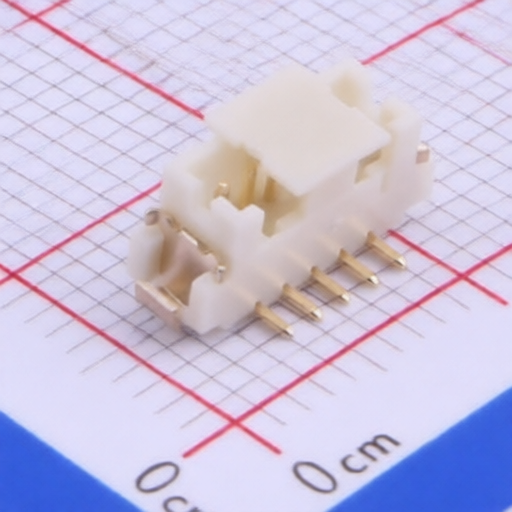

Joint Tech Elec A1252WV-SF-05PD01
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A1252WV-SF-05PD01
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER SMD 5POS 1.25mm
Description:
Connector Header 5 position 1.25mm Pitch
Datasheet:
Joint Tech Elec A1252WV-SF-05PD01
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
3.4mm
Reference Series:
-
Pins Structure:
1x5P
Contact Plating:
Gold
Contact Material:
Brass;PA6T
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
1.25mm
Voltage Rating (Max):
150V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
10mm
Z-Height of the Board:
5.9mm
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Joint Tech Elec
1417 Products
HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
