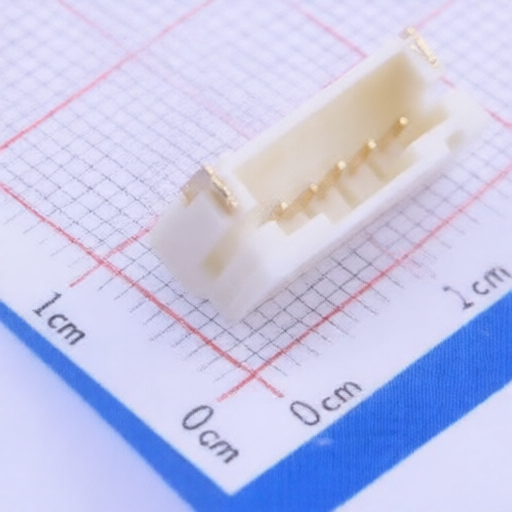

Joint Tech Elec A2001WR-S-05PD01
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
A2001WR-S-05PD01
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER SMD 5POS 2mm
Description:
Connector Header 5 position 2mm Pitch
Datasheet:
Joint Tech Elec A2001WR-S-05PD01
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
7.65mm
Reference Series:
PH
Pins Structure:
1x5P
Contact Plating:
Gold
Contact Material:
Brass;PA6T
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
2mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
5
Number of Rows:
1
Z-Height of the Board:
5.5mm
Row Spacing:
-
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
