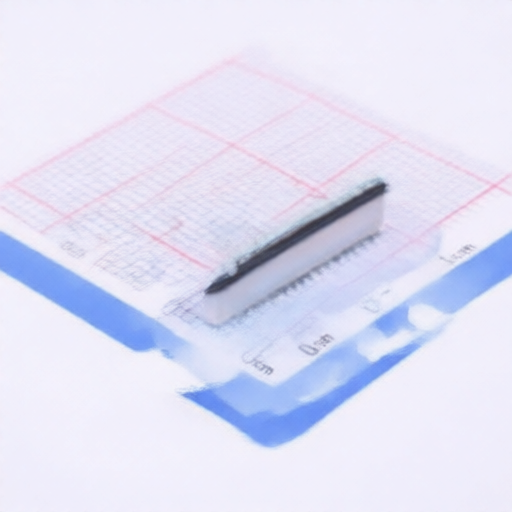

Joint Tech Elec F0500WV-S-30PNLNG1G00L

Joint Tech Elec F0500WV-S-30PNLNG1G00L

Name: Joint Tech Elec F0500WV-S-30PNLNG1G00L
Brand: Joint Tech Elec

Manufacturer: Joint Tech Elec Asian Brands

Mfr. Part #: F0500WV-S-30PNLNG1G00L

Package: SMD,P=0.5mm

Customer #:

Key Attributes: CONN FFC FPC 30POS 0.5mm BOTTOM CNT SMD

Description: FFC/FPC Connector 30 Position 0.5mm Pitch Bottom Contact Surface Mount

Datasheet: Joint Tech Elec F0500WV-S-30PNLNG1G00L

Products Specifications

Category:

Connectors, Interconnects/FFC, FPC (Flat Flexible) Connectors/FFC, FPC (Flat Flexible) Connector Assemblies

Manufacturer:

Joint Tech Elec

Package:

SMD,P=0.5mm

Operating Temperature:

-25℃~+85℃

Locking Feature:

Slide Lock

Number of Contacts:

30P

Pitch:

0.5mm

Current Rating:

500mA

Voltage Rating (Max):

50V

Contact Type:

Bottom Contact

Mounting Type:

Surface Mount,Vertical

FFC, FCB Thickness:

0.3mm

Contact Plating:

Gold

Contact Material:

Phosphor Bronze

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
