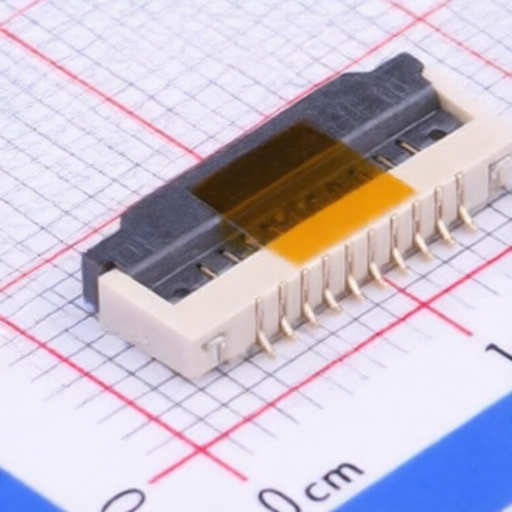

Joint Tech Elec F1015WR-S-10PNLNG1T01L
Manufacturer:
Joint Tech Elec
Asian Brands
Mfr. Part #:
F1015WR-S-10PNLNG1T01L
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 10POS 1mm BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 10 Position 1mm Pitch Bottom Contact Surface Mount, Right Angle
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Operating Temperature:
-25℃~+85℃
Locking Feature:
Hinged Lid
Number of Contacts:
10P
Pitch:
1mm
Current Rating:
500mA
Voltage Rating (Max):
50V
Contact Type:
Bottom Contact
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Plating:
-
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Joint Tech Elec
1417 Products
HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
