Joint Tech Elec F0500WV-S-16PNLNG1G00L

Joint Tech Elec F0500WV-S-16PNLNG1G00L

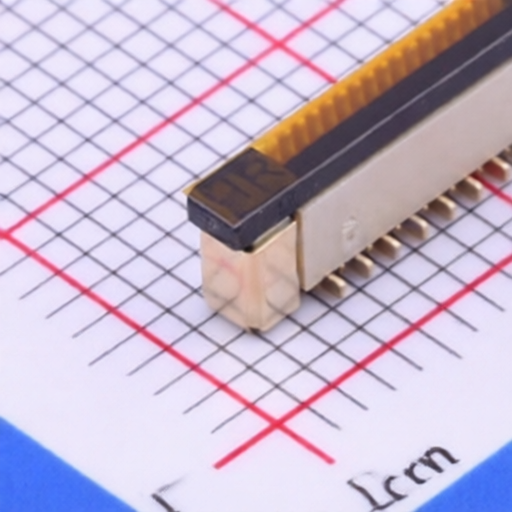

Name: Joint Tech Elec F0500WV-S-16PNLNG1G00L
Brand: Joint Tech Elec

Manufacturer: Joint Tech Elec Asian Brands

Mfr. Part #: F0500WV-S-16PNLNG1G00L

Package: SMD,P=0.5mm

Customer #:

Key Attributes: CONN FFC FPC 16POS 0.5mm BOTTOM CNT SMD

Description: FFC/FPC Connector 16 Position 0.5mm Pitch Bottom Contact Surface Mount

Products Specifications

Category:

Connectors, Interconnects/FFC, FPC (Flat Flexible) Connectors/FFC, FPC (Flat Flexible) Connector Assemblies

Manufacturer:

Joint Tech Elec

Package:

SMD,P=0.5mm

Operating Temperature:

-25℃~+85℃

Locking Feature:

Slide Lock

Number of Contacts:

16P

Pitch:

0.5mm

Current Rating:

500mA

Voltage Rating (Max):

50V

Contact Type:

Bottom Contact

Mounting Type:

Surface Mount,Vertical

FFC, FCB Thickness:

0.3mm

Contact Plating:

Gold

Contact Material:

Phosphor Bronze

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Joint Tech Elec

1417 Products

Asian Brand

HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
