Jingdao Microelectronics S5MB

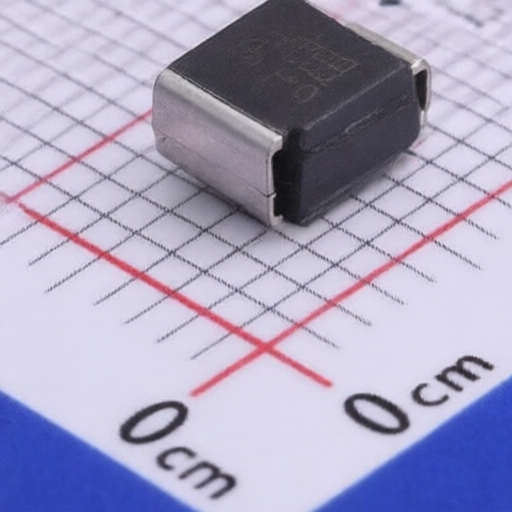

Jingdao Microelectronics S5MB

Name: Jingdao Microelectronics S5MB
Brand: Jingdao Microelectronics

Manufacturer: Jingdao Microelectronics Asian Brands

Mfr. Part #: S5MB

Package: SMB(DO-214AA)

Customer #:

Key Attributes: DIODE STANDARD 1kV 5A SMB(DO-214AA)

Description: Diode Independent 1000V 5A Surface Mount SMB(DO-214AA)

Datasheet: Jingdao Microelectronics S5MB

Products Specifications

Category:

Discrete Semiconductors/Diodes/Single Diodes

Manufacturer:

Jingdao Microelectronics

Package:

SMB(DO-214AA)

Non-Repetitive Peak Forward Surge Current:

200A

Reverse Leakage Current (Ir):

10uA@1000V

Operating Junction Temperature Range:

-55℃~+150℃

Diode Configuration:

Independent

Voltage - DC Reverse (Vr) (Max):

1kV

Voltage - Forward(Vf@If):

1.1V@5A

Current - Rectified:

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541100000
USHTS	8541100040
TARIC	8541100000
CAHTS	8541100090
BRHTS	85411011
INHTS	85411000
MXHTS	8541.10.01

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jingdao Microelectronics

2361 Products

Asian Brand

Shangdong Jingdao Microelectronics Co.,Ltd. is primarily engaged in developing and manufacturing semiconductor products. Our industrial park located in Oriental Holy City-Qufu, the hometown of Confucious. There are 122000 square meters in our industrial park with 20000 square meters producing area. We had advanced GPP wafer producing lines and automatic SMD packaging producing linea. We could provide High Coast-effective whole series diodes for customers.
