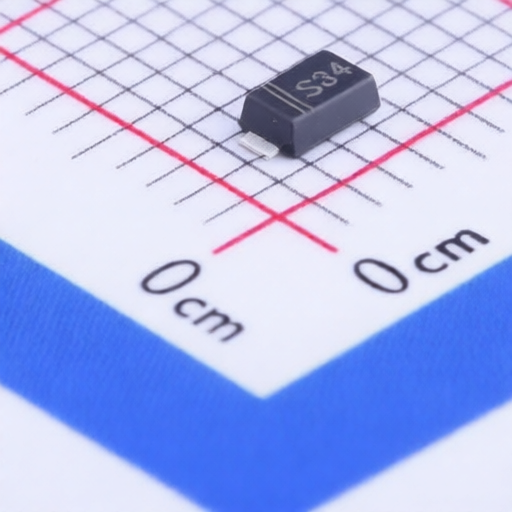

Jingdao Microelectronics DS34W

Jingdao Microelectronics DS34W

Name: Jingdao Microelectronics DS34W
Brand: Jingdao Microelectronics

Manufacturer: Jingdao Microelectronics Asian Brands

Mfr. Part #: DS34W

Package: SOD-123F

Customer #:

Key Attributes: DIODE SCHOTTKY 40V SOD-123F

Description: Diode 40V 3A Surface Mount SOD-123F

Datasheet: Jingdao Microelectronics DS34W

Products Specifications

Category:

Discrete Semiconductors/Diodes/Single Diodes

Manufacturer:

Jingdao Microelectronics

Package:

SOD-123F

Non-Repetitive Peak Forward Surge Current:

80A

Reverse Leakage Current (Ir):

500uA@40V

Operating Junction Temperature Range:

-55℃~+125℃

Voltage - DC Reverse (Vr) (Max):

40V

Voltage - Forward(Vf@If):

550mV@3A

Current - Rectified:

Additional Information

Type	Details
Minimum	20
Multiple	20
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541100000
USHTS	8541100040
TARIC	8541100000
CAHTS	8541100090
BRHTS	85411011
INHTS	85411000
MXHTS	8541.10.01
