Jingdao Microelectronics DS16W

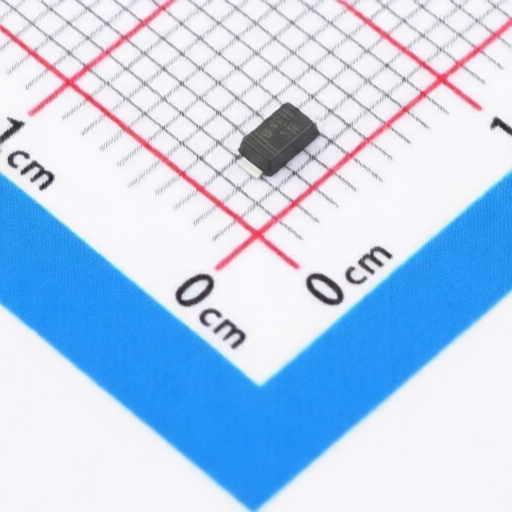

Jingdao Microelectronics DS16W

Name: Jingdao Microelectronics DS16W
Brand: Jingdao Microelectronics

Manufacturer: Jingdao Microelectronics Asian Brands

Mfr. Part #: DS16W

Package: SOD-123F

Customer #:

Key Attributes: DIODE SCHOTTKY 60V SOD-123F

Description: Diode 60V 1A Surface Mount SOD-123F

Datasheet: Jingdao Microelectronics DS16W

Products Specifications

Category:

Discrete Semiconductors/Diodes/Single Diodes

Manufacturer:

Jingdao Microelectronics

Package:

SOD-123F

Non-Repetitive Peak Forward Surge Current:

30A

Reverse Leakage Current (Ir):

300uA@60V

Operating Junction Temperature Range:

-55℃~+125℃

Voltage - DC Reverse (Vr) (Max):

60V

Voltage - Forward(Vf@If):

700mV@1A

Current - Rectified:

Additional Information

Type	Details
Minimum	50
Multiple	50
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541100000
USHTS	8541100040
TARIC	8541100000
CAHTS	8541100090
BRHTS	85411011
INHTS	85411000
MXHTS	8541.10.01
