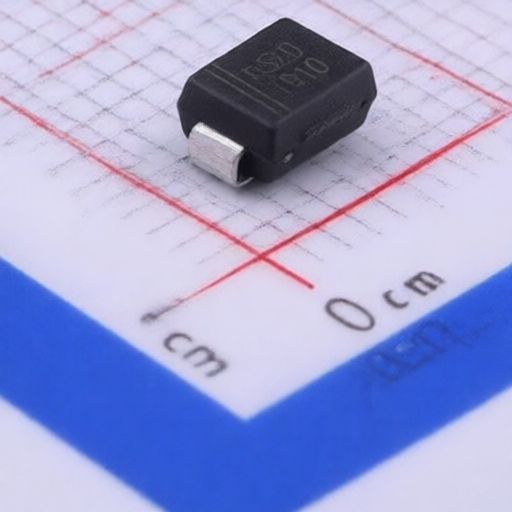

Jingdao Microelectronics ES2DB

Jingdao Microelectronics ES2DB

Name: Jingdao Microelectronics ES2DB
Brand: Jingdao Microelectronics

Manufacturer: Jingdao Microelectronics Asian Brands

Mfr. Part #: ES2DB

Package: SMB

Customer #:

Key Attributes: Diode 200V 2A SMB

Description: 60A 35ns Independent 200V 1V@2A 2A SMB Single Diodes RoHS

Datasheet: Jingdao Microelectronics ES2DB

Products Specifications

Category:

Discrete Semiconductors/Diodes/Single Diodes

Manufacturer:

Jingdao Microelectronics

Package:

SMB

Non-Repetitive Peak Forward Surge Current:

60A

Reverse Leakage Current (Ir):

5uA@200V

Reverse Recovery Time (trr):

35ns

Operating Junction Temperature Range:

-55℃~+150℃@(Tj)

Diode Configuration:

Independent

Voltage - DC Reverse (Vr) (Max):

200V

Voltage - Forward(Vf@If):

1V@2A

Current - Rectified:

Additional Information

Type	Details
Minimum	20
Multiple	20
Standard Packaging	3000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541100000
USHTS	8541100040
TARIC	8541100000
CAHTS	8541100090
BRHTS	85411011
INHTS	85411000
MXHTS	8541.10.01

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jingdao Microelectronics

2361 Products

Asian Brand

Shangdong Jingdao Microelectronics Co.,Ltd. is primarily engaged in developing and manufacturing semiconductor products. Our industrial park located in Oriental Holy City-Qufu, the hometown of Confucious. There are 122000 square meters in our industrial park with 20000 square meters producing area. We had advanced GPP wafer producing lines and automatic SMD packaging producing linea. We could provide High Coast-effective whole series diodes for customers.
