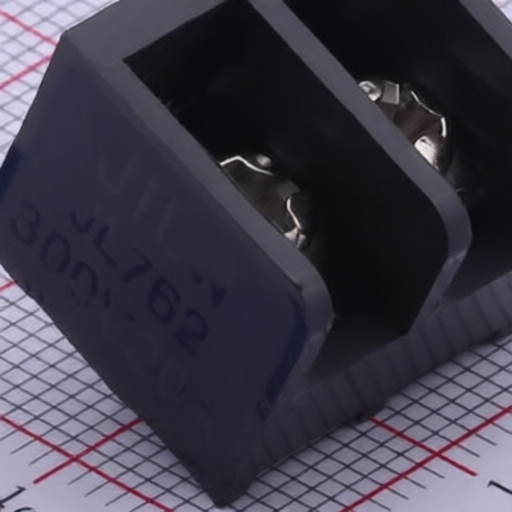

JILN JL762-76202BA1
Manufacturer:
JILN
Asian Brands
Mfr. Part #:
JL762-76202BA1
Package:
Through Hole,P=7.62mm
Customer #:
Key Attributes:
TERM BLK BARRIER 2CIRCUIT 7.62mm
Description:
2 Position Barrier Block Connector 14~22 AWG 300V 20A Through Hole
Datasheet:
JILN JL762-76202BA1
Products Specifications
Manufacturer:
Package:
Through Hole,P=7.62mm
Number of Pins:
2P
Number of Positions or Pins:
1x2P
Pin Location:
Side Mount
Barrier Type:
3-Side
voltage:
300V
Pitch:
7.62mm
Number of Rows:
1
Wire Gauge - mm2:
-
Number of PINs Per Row:
2
Operating Temperature:
-40℃~+105℃
Current Rating:
20A
Color:
Black
Screw Specification:
M3.5
Wire Gauge - AWG:
14~22
Mounting Type:
Straight Pin
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 320 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
