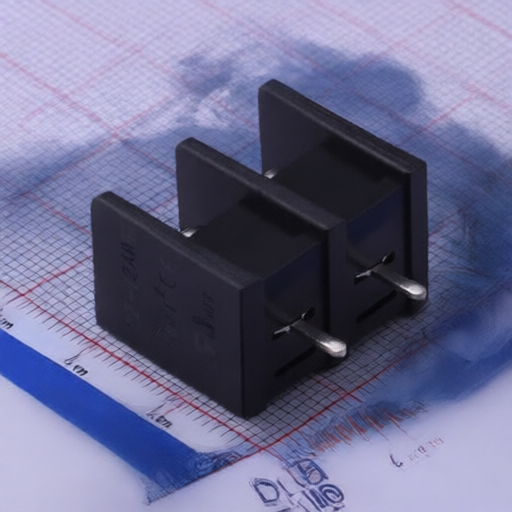

JILN JL55C-10002B01
Manufacturer:
JILN
Asian Brands
Mfr. Part #:
JL55C-10002B01
Package:
Through Hole,P=10mm
Customer #:
Key Attributes:
TERM BLK BARRIER 2CIRCUIT 10mm
Description:
2 Position Barrier Block Connector 12~22 AWG 300V 25A Through Hole
Datasheet:
JILN JL55C-10002B01
Products Specifications
Manufacturer:
Package:
Through Hole,P=10mm
Number of Pins:
2P
Number of Positions or Pins:
1x2P
Pin Location:
Mid Terminal
Barrier Type:
2-Side
voltage:
300V
Pitch:
10mm
Number of Rows:
1
Wire Gauge - mm2:
-
Number of PINs Per Row:
2
Current Rating:
25A
Operating Temperature:
-40℃~+105℃
Color:
Black
Screw Specification:
M4
Wire Gauge - AWG:
12~22
Mounting Type:
Straight Pin
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 150 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JILN
1638 Products
Shenzhen Jinling Electronics Co., Ltd.
(hereinafter referred to as "JiLN") was established in 2004. It is a national high-tech enterprise in China. JiLN has a well-trained product R&D team and management team, and has more than 280 patents for independent innovation, R&D and production of products. The company's main products include pin and female headers, terminal blocks, cable assemblies, wiring harnesses, power sockets, SATA, SCSI, DIN41612, PLCC, IDC, sockets, card holders and other products, which are widely used in industrial control, new energy, photovoltaic energy storage, communications, security, medical and many other fields. JiLN has passed IATF16949 and ISO9001-2015 quality management system certification and ISO14001-2015 environmental management system certification. It adheres to the leading technology and brand strategy, and strives to provide customers with high-quality, low-cost and reliable products.
