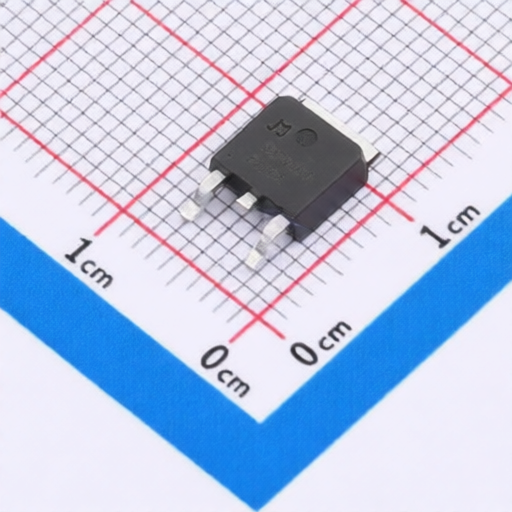

Jiangsu JieJie Microelectronics JMSH1006AK
Manufacturer:
Jiangsu JieJie Microelectronics
Asian Brands
Mfr. Part #:
JMSH1006AK
Package:
TO-252-3L
Customer #:
Key Attributes:
MOSFET N-CH 100V 90A TO-252-3L
Description:
N-Channel 100V 90A 101W Surface Mount TO-252-3L
Datasheet:
Jiangsu JieJie Microelectronics JMSH1006AK
Products Specifications
Manufacturer:
Package:
TO-252-3L
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
90A
RDS(on):
5.5mΩ@10V,20A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.7V
Reverse Transfer Capacitance (Crss@Vds):
11.6pF@50V
Number:
1 N-channel
Input Capacitance(Ciss):
2.369nF@50V
Pd - Power Dissipation:
101W
Gate Charge(Qg):
38nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Jiangsu JieJie Microelectronics
258 Products
Founded in 1995,Jiangsu JieJie Microelectronics Co., Ltd. is a high-tech enterprise mainly engaged in designing,manufacturing and marketing semiconductor discrete components and power electronic devices.We are the first company to produce “square” type SCR and TRIAC and have the most extensive SCR and TRIAC production line in China.
