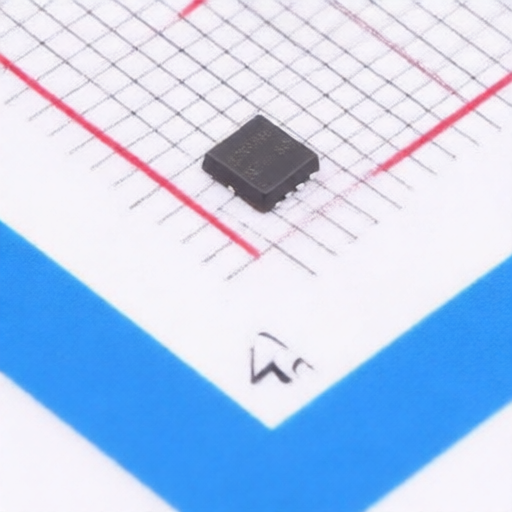

Jiangsu JieJie Microelectronics JMTQ170C04D

Jiangsu JieJie Microelectronics JMTQ170C04D

Name: Jiangsu JieJie Microelectronics JMTQ170C04D
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMTQ170C04D

Package: DFN-8(3x3)

Customer #:

Key Attributes: MOSFET N-CH+P-CH ARR 40V 14A DFN-8(3x3)

Description: N-Channel+P-Channel Array 40V 14A 7.3W Surface Mount DFN-8(3x3)

Datasheet: Jiangsu JieJie Microelectronics JMTQ170C04D

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

DFN-8(3x3)

Drain to Source Voltage:

40V

Current - Continuous Drain(Id):

14A

RDS(on):

16mΩ@10V;38mΩ@10V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

1.5V;1.6V

Type:

N-Channel + P-Channel

Reverse Transfer Capacitance (Crss@Vds):

68.5pF;79.5pF

Number:

1 N-Channel + 1 P-Channel

Input Capacitance(Ciss):

980pF;1.034nF

Output Capacitance(Coss):

86.2pF;107pF

Pd - Power Dissipation:

7.3W

Gate Charge(Qg):

11nC@10V;20nC@10V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	5000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
