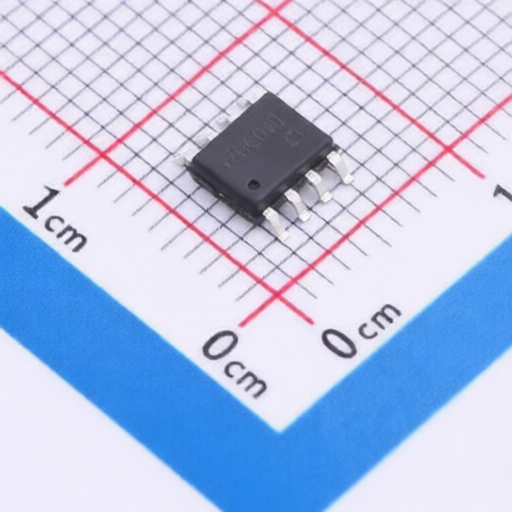

Jiangsu JieJie Microelectronics JMTP170C04D
Manufacturer:
Jiangsu JieJie Microelectronics
Asian Brands
Mfr. Part #:
JMTP170C04D
Package:
SOP-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 40V 10A SOP-8
Description:
N-Channel+P-Channel Array 40V 10A 7.5W Surface Mount SOP-8
Datasheet:
Jiangsu JieJie Microelectronics JMTP170C04D
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
10A
RDS(on):
44mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
79.5pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
107pF
Pd - Power Dissipation:
7.5W
Input Capacitance(Ciss):
1.034nF
Gate Charge(Qg):
20nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Jiangsu JieJie Microelectronics
258 Products
Founded in 1995,Jiangsu JieJie Microelectronics Co., Ltd. is a high-tech enterprise mainly engaged in designing,manufacturing and marketing semiconductor discrete components and power electronic devices.We are the first company to produce “square” type SCR and TRIAC and have the most extensive SCR and TRIAC production line in China.
